Cases & Enclosures

Browse community-designed cases or create your own. 3D printable STL files, laser-cut templates, and DIY inspiration included.

Generation
Board
Model

Showing all 11 cases

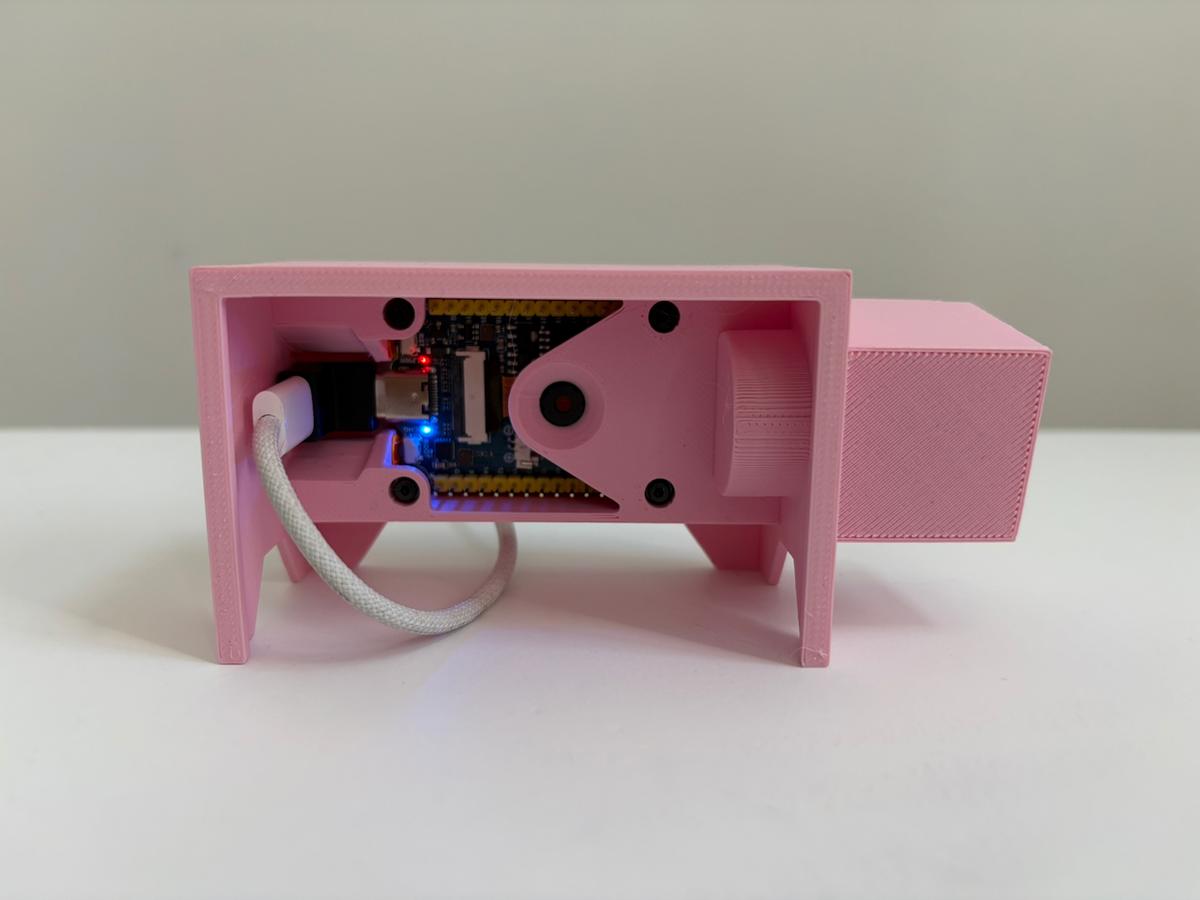

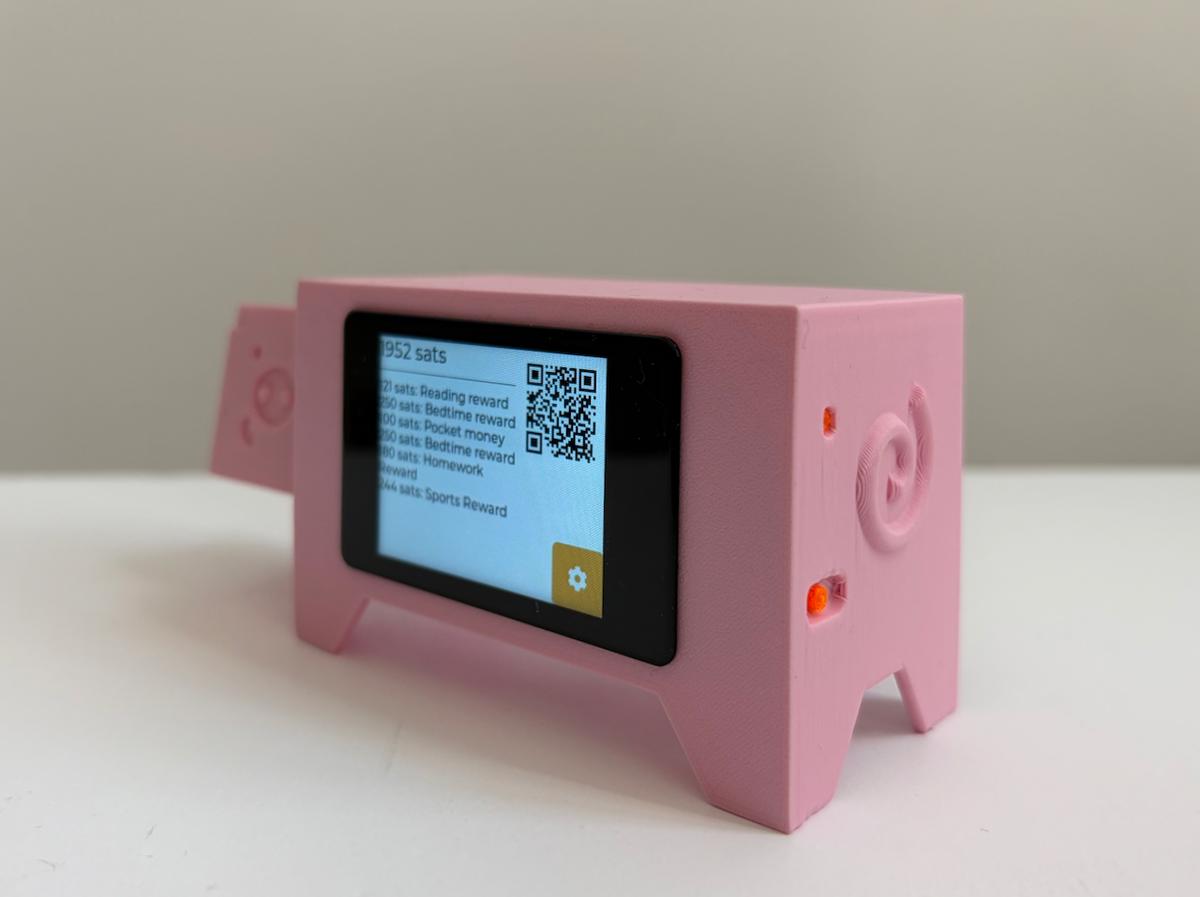

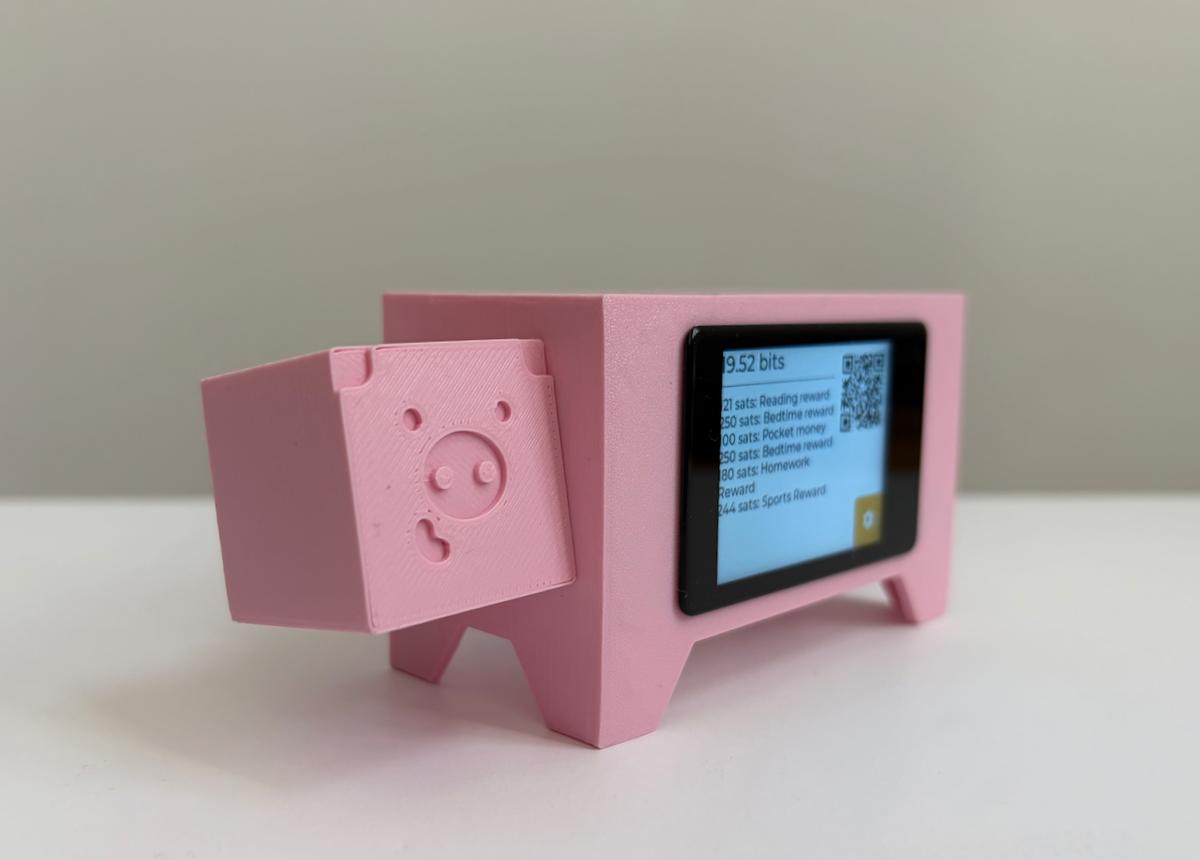

P1 Genesis Piggy

ESP32-S3 2 inch

Genesis Piggy is back with a fresh redesign, purpose-built for the Waveshare 2-inch touch LCD board. Same classic proportions, but with some key upgrades: a fully rotating head that can be positioned at any angle, a cleaner look with the cable routed behind the scenes, and easy button access from the piggy's rear.

Board: Waveshare ESP32-S3 2inch Touch Display
Display size: 2 inch
Operating System: MicroPythonOS
Material: Body & Head: PLA or PETG | Buttons: PETG
Printing advice: Body: Screen face down. Add supports on the base plate. Head: Pig's face up. Add supports on the base plate. Buttons: Print from PETG for extra strength. Add Rafts to secure the two buttons to the base plate during printing.
Extra Hardware:
Creator: Richard Licence: CC BY-SA 4.0

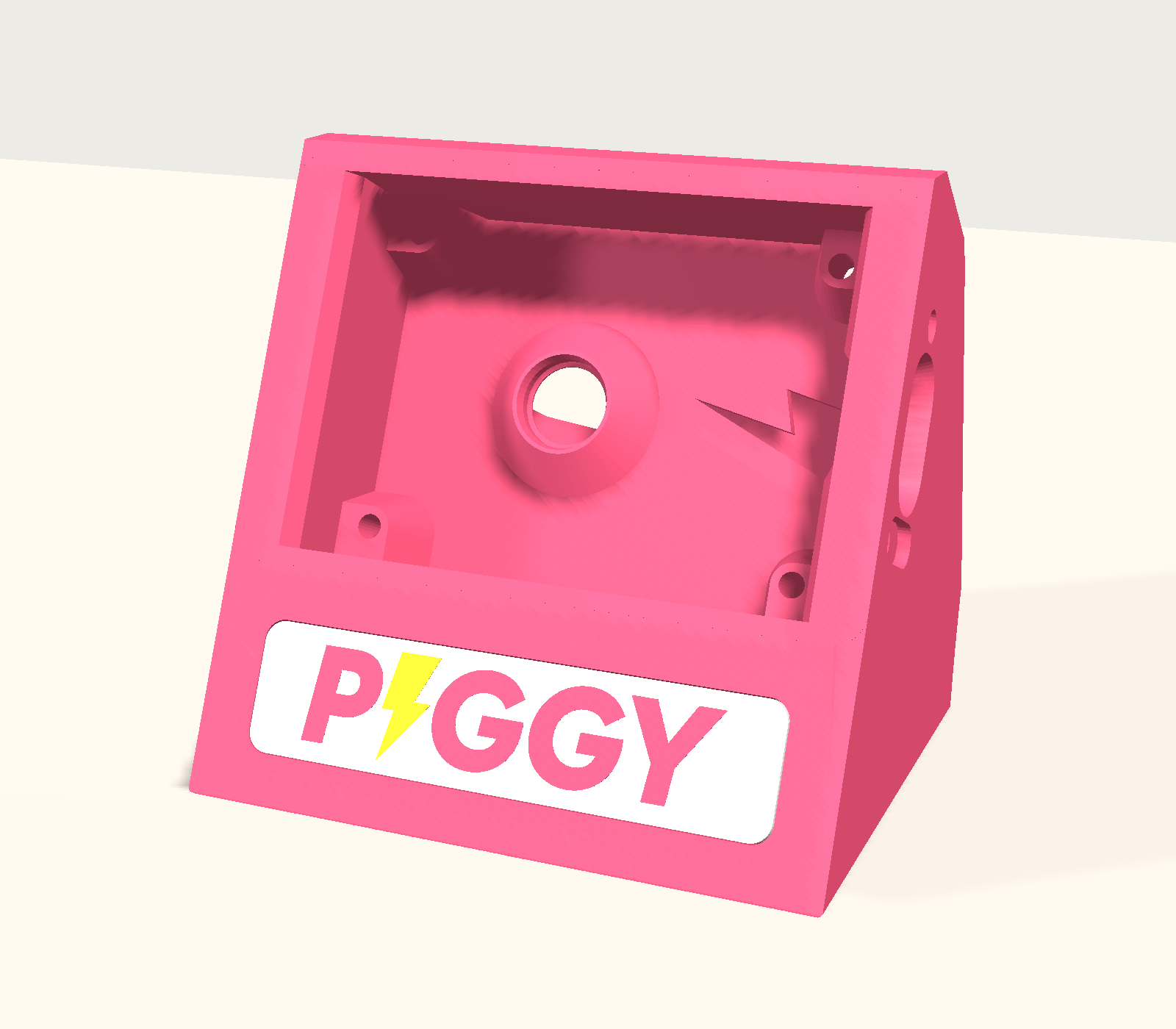

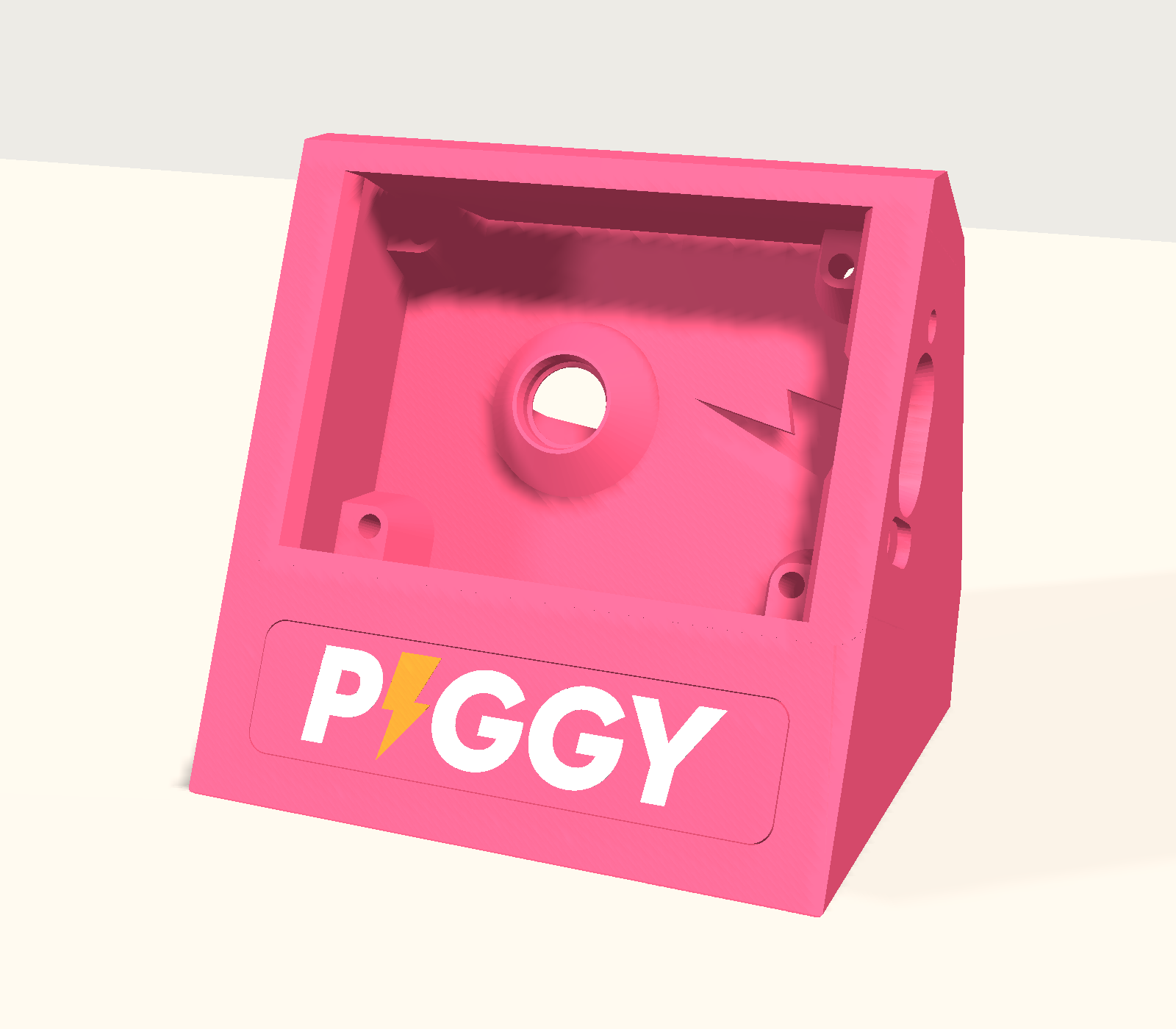

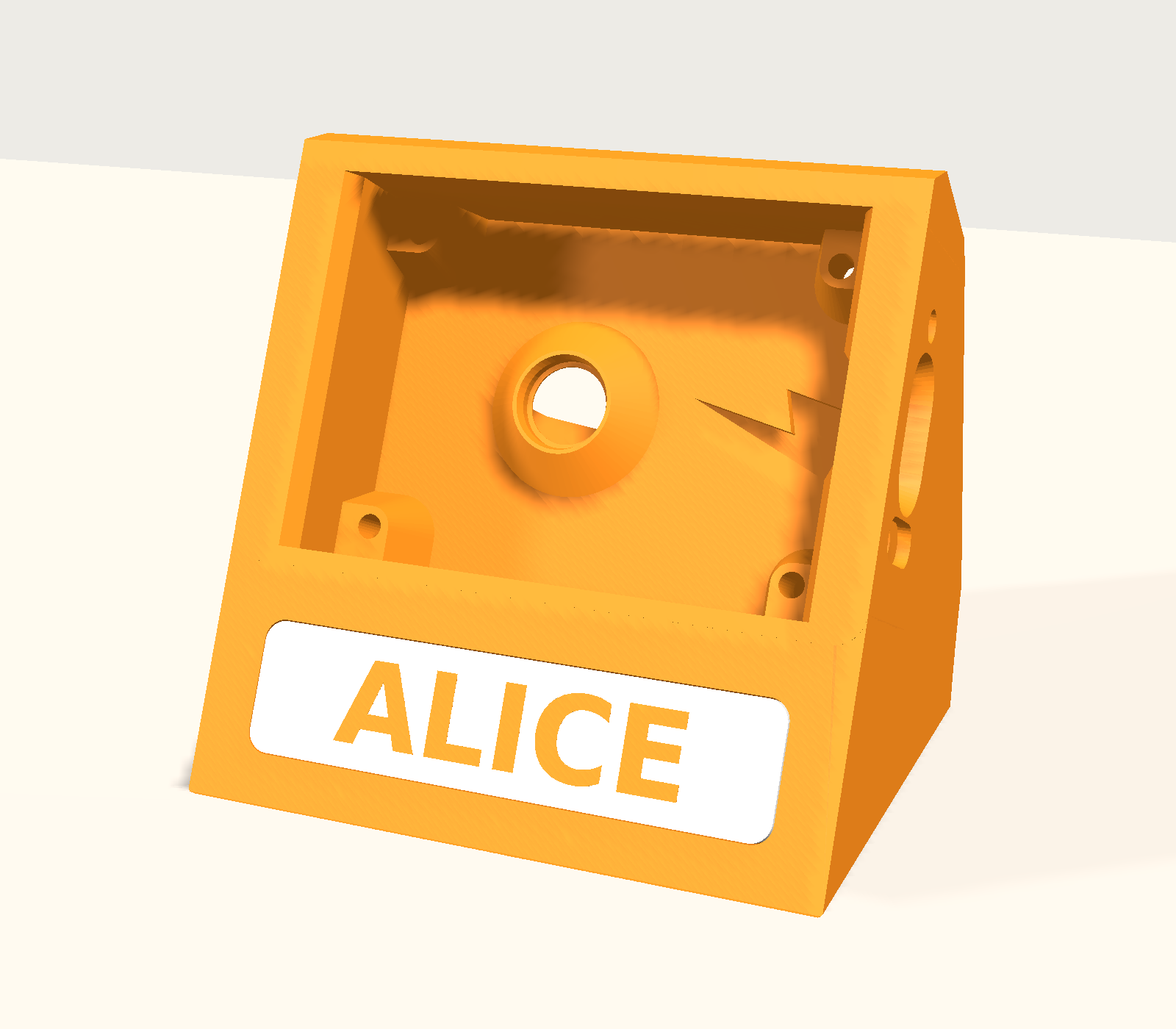

P1 ZapStand

ESP32-S3 2 inch

The 'ZapStand' desk edition sits at a comfortable viewing angle on your desk or counter, keeping the screen easy to see and easy to tap. Its party trick is the swappable badge: printed inserts drop into a pocket on the front and can be changed in seconds - print your name, your favorite project's logo, or whatever you fancy, and show it off alongside your Piggy.

Board: Waveshare ESP32-S3 2inch Touch Display
Display size: 2 inch
Operating System: MicroPythonOS
Material: Stand: PLA or PETG | Badges: PLA (multi-color)
Printing advice: Prints support-free in the plated orientation. Add rafts to secure the two buttons to the printer bed. Badges print face down; the multi-color detail lives in the first few layers only.
Extra Hardware:
Creator: Jake Licence: CC BY-SA 4.0

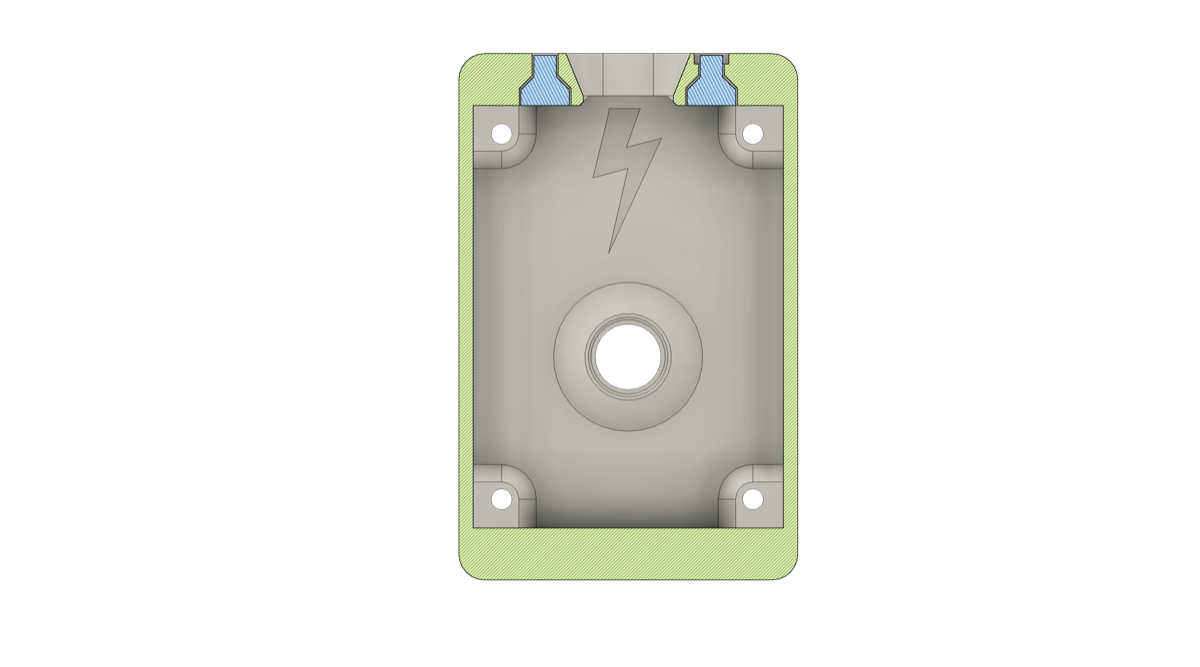

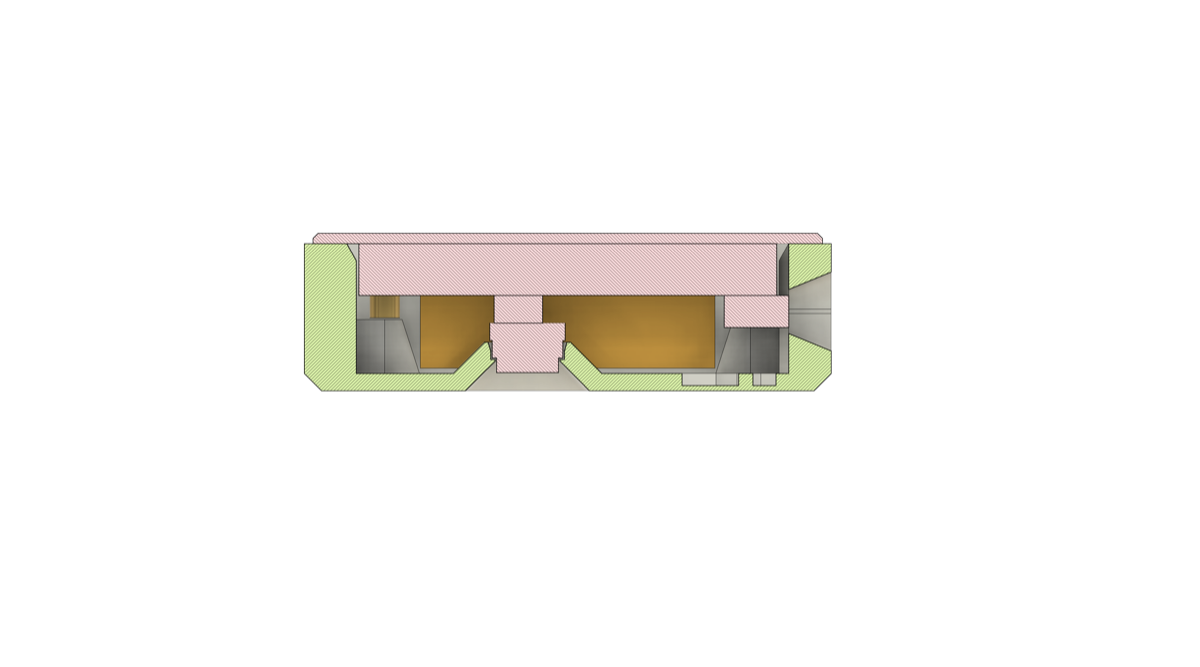

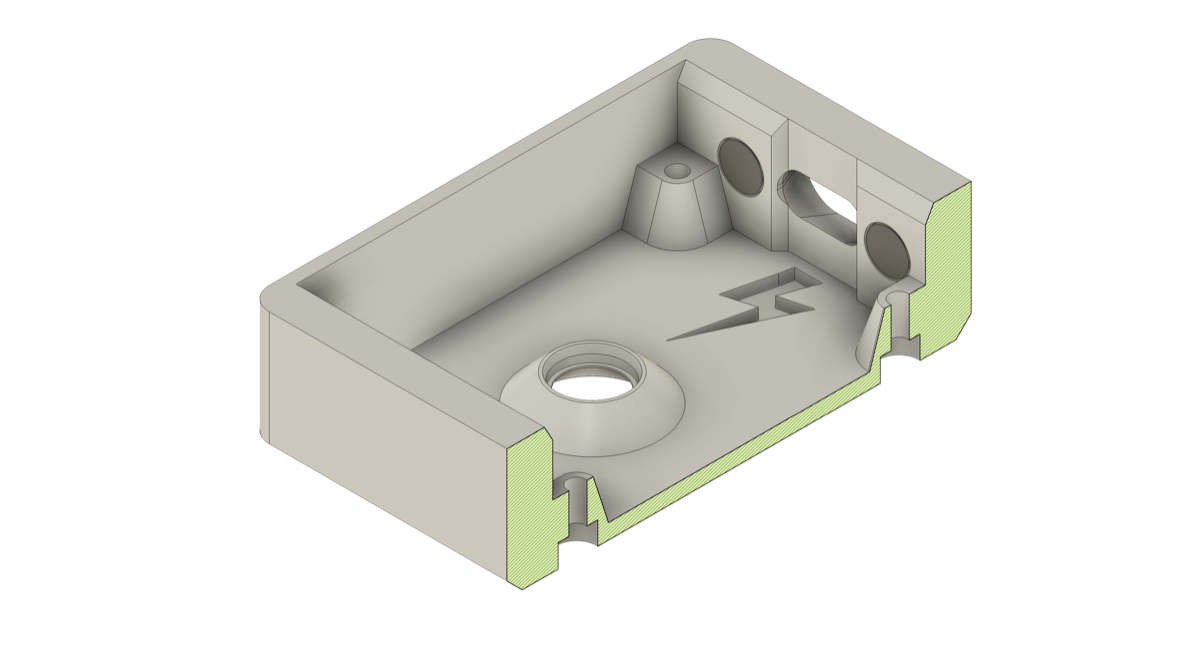

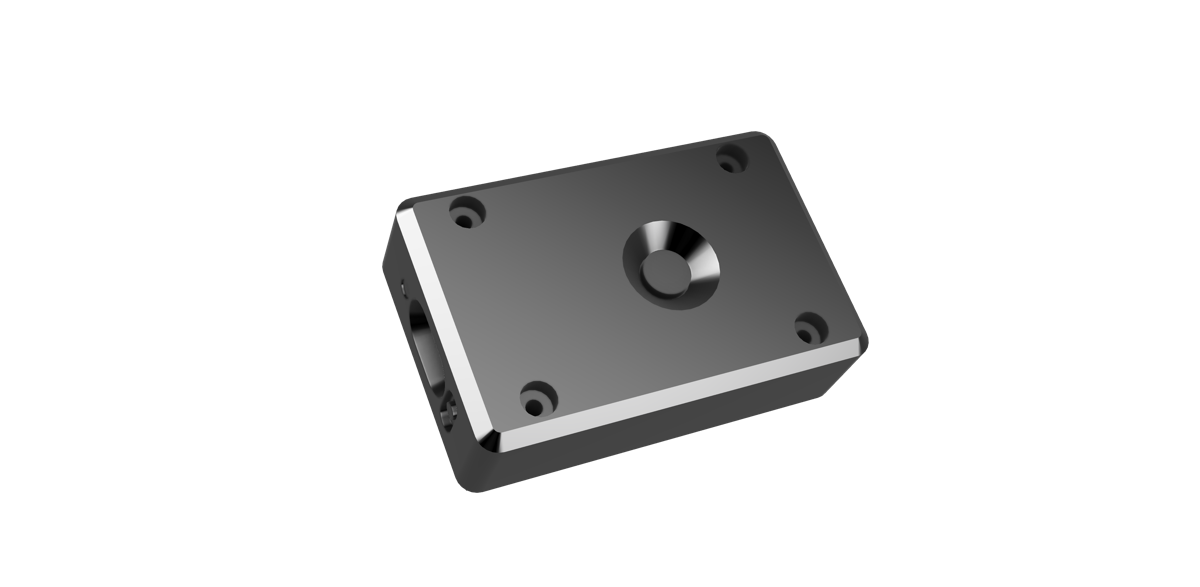

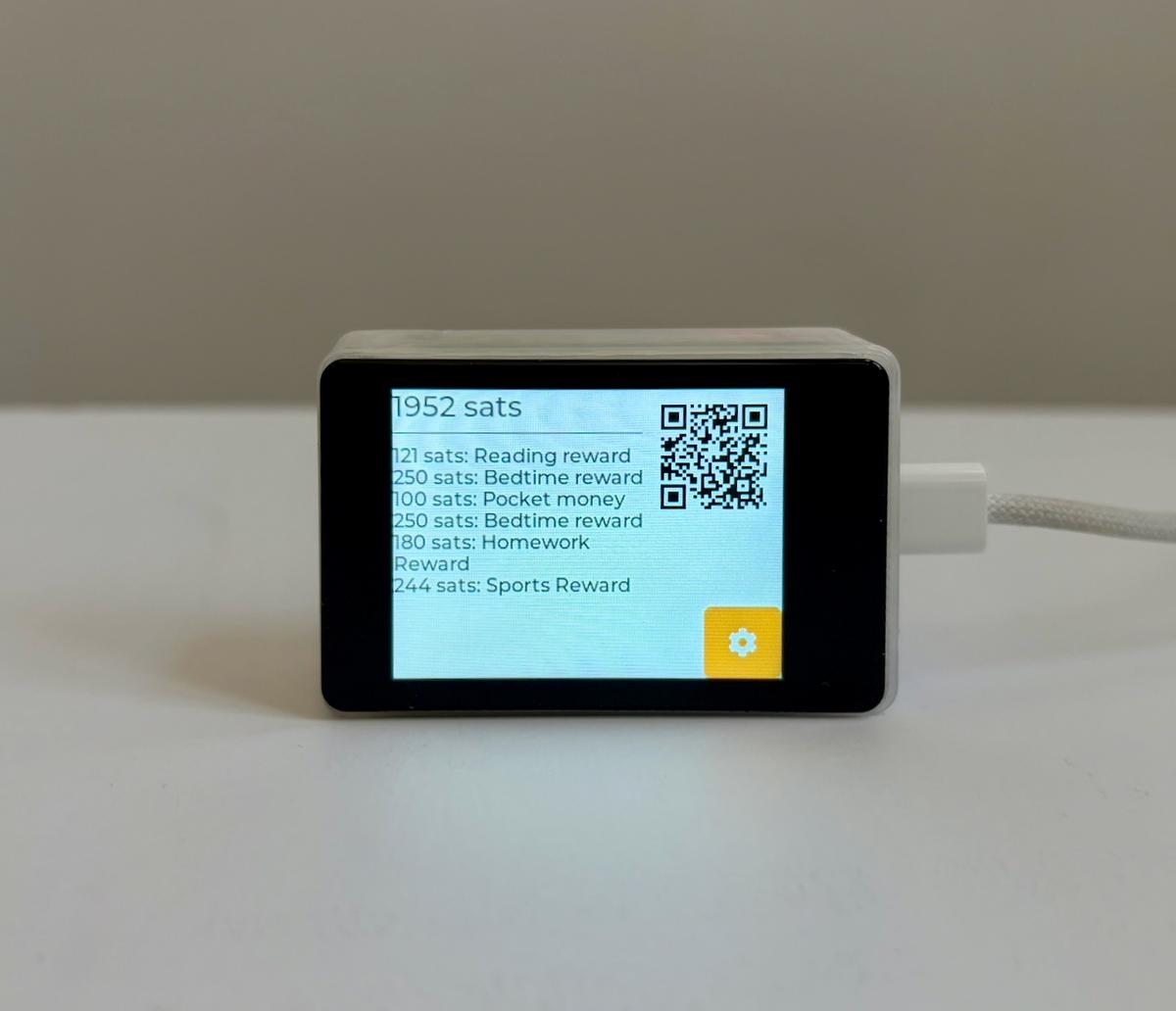

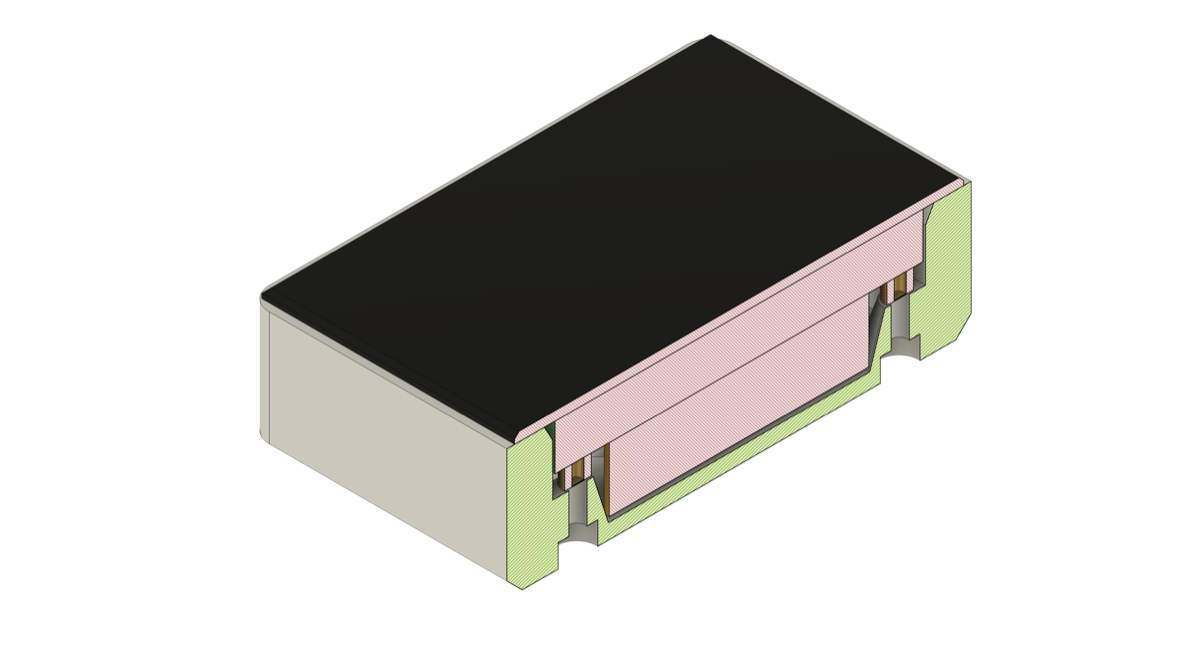

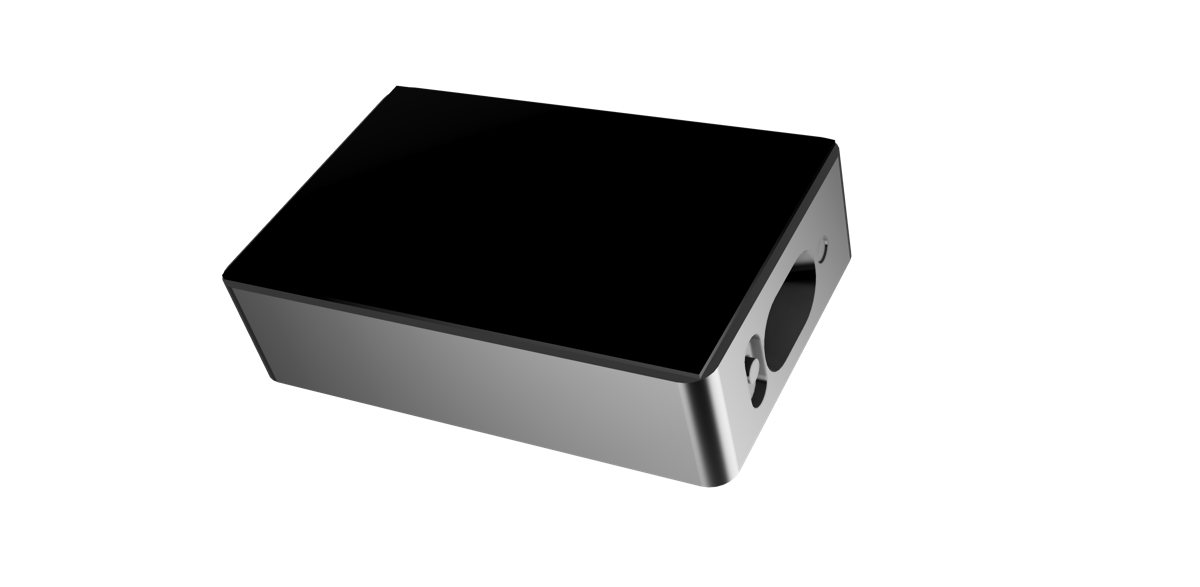

P1 ZapBox!

ESP32-S3 2 inch

The 'ZapBox!' pocket-size edition is engineered to be ultra-compact. Made from a single part and held together with four screws, it's perfect for travel. In fact, the team carries these very piggies on the road - an entire sounder of them fits neatly into a single backpack for workshops.

Board: Waveshare ESP32-S3 2inch Touch Display
Display size: 2 inch
Operating System: MicroPythonOS
Material: PLA or PETG
Printing advice: Camera face down. Add rafts to secure the two buttons to the printer bed.
Extra Hardware:
Creator: Richard Licence: CC BY-SA 4.0

P2 ZapBox!

ESP32-S3 3.5 inch

The 'ZapBox!' for the Waveshare 3.5-inch touch display: the same single-part, four-screw pocket box scaled up for the larger screen, giving MicroPythonOS more room for the wallet display and QR codes while staying compact enough to travel.

Board: Waveshare ESP32-S3 3.5inch Touch Display
Display size: 3.5 inch
Operating System: MicroPythonOS
Material: PLA or PETG
Printing advice: Sliced for a 0.4 mm nozzle at 0.16 mm layers. Three build plates: the box, the BOOT and RST buttons, and the Zap bolt inlays. Supports are enabled in the project file.
Creator: Richard Licence: CC BY-SA 4.0

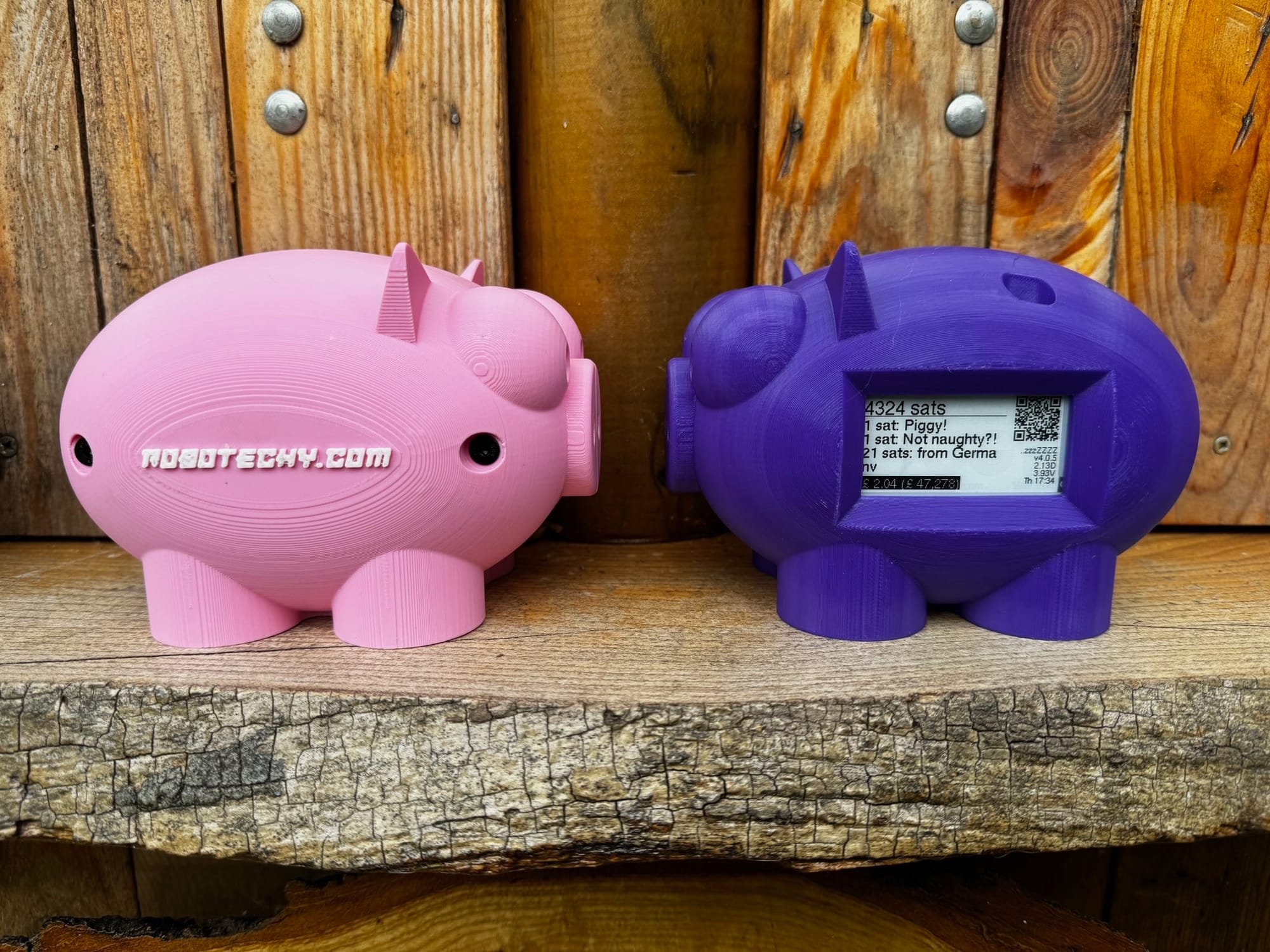

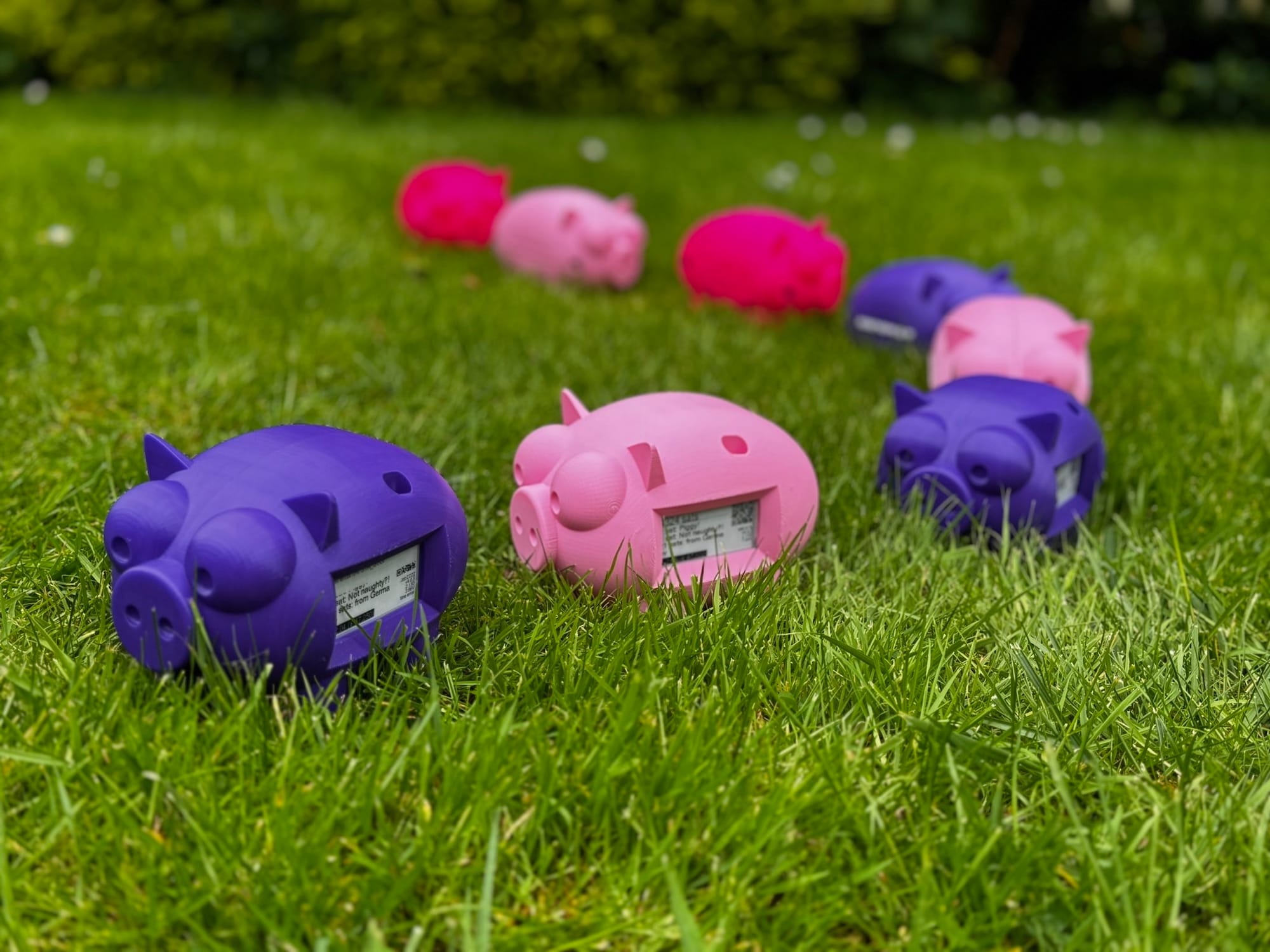

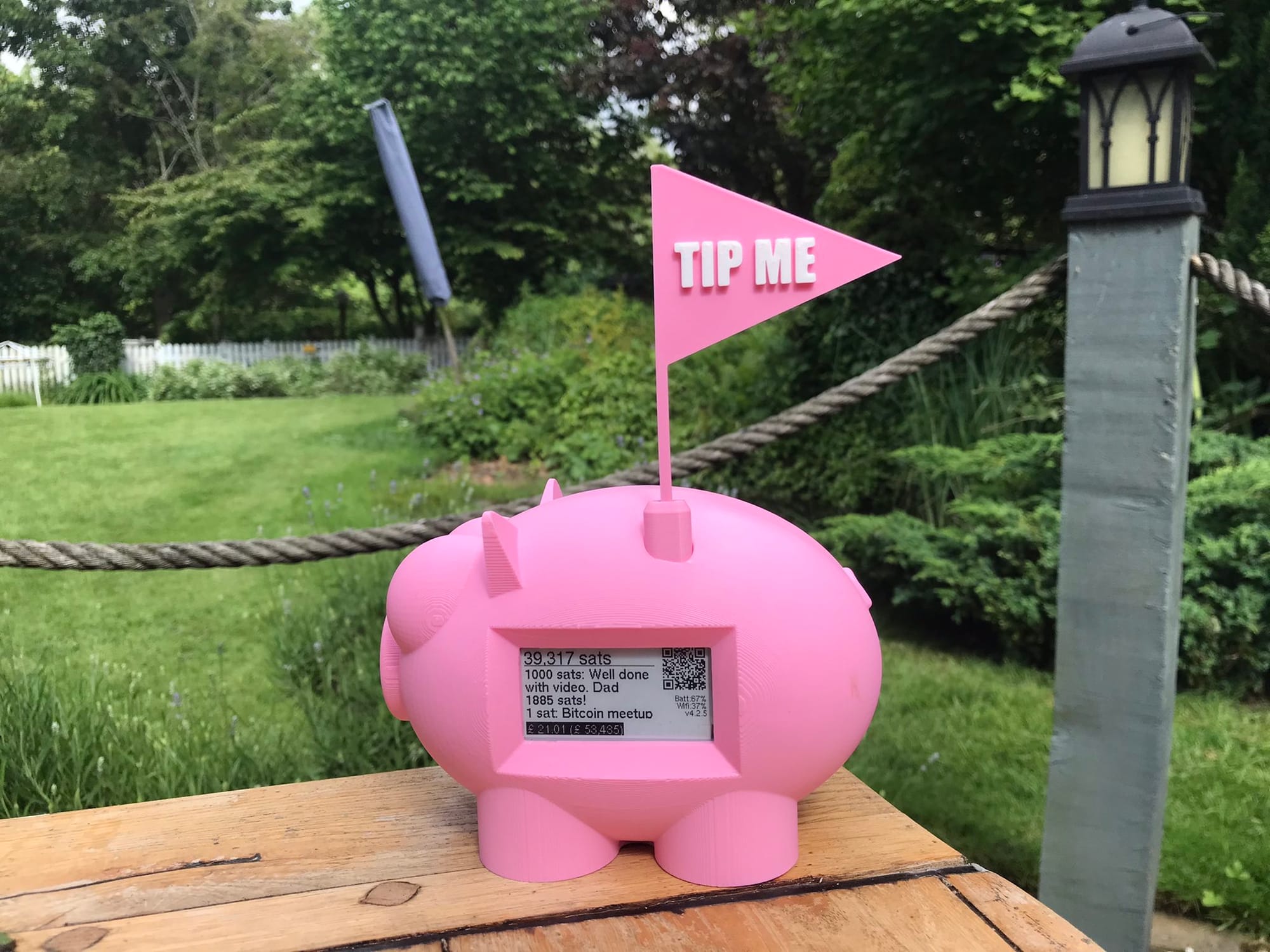

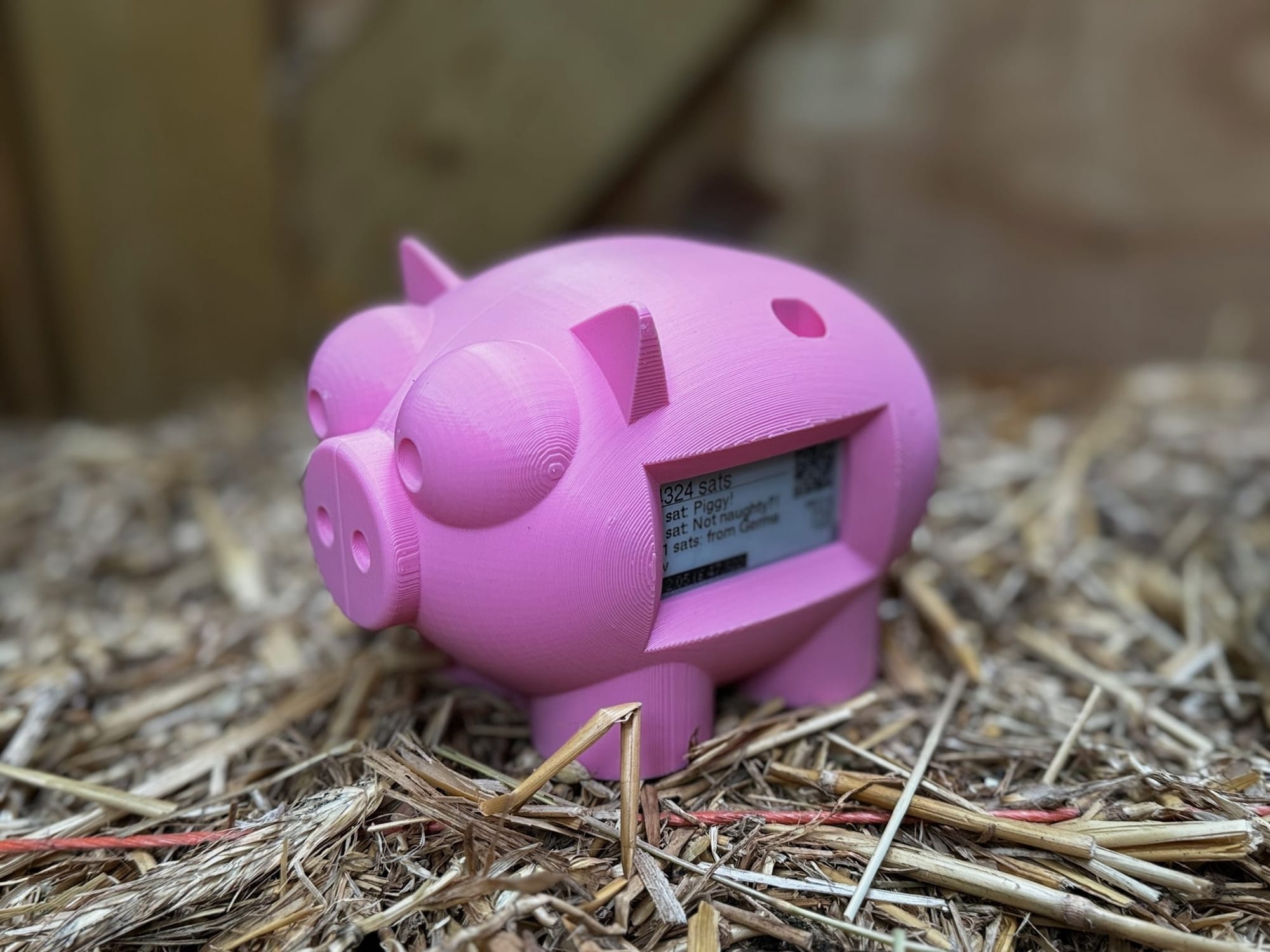

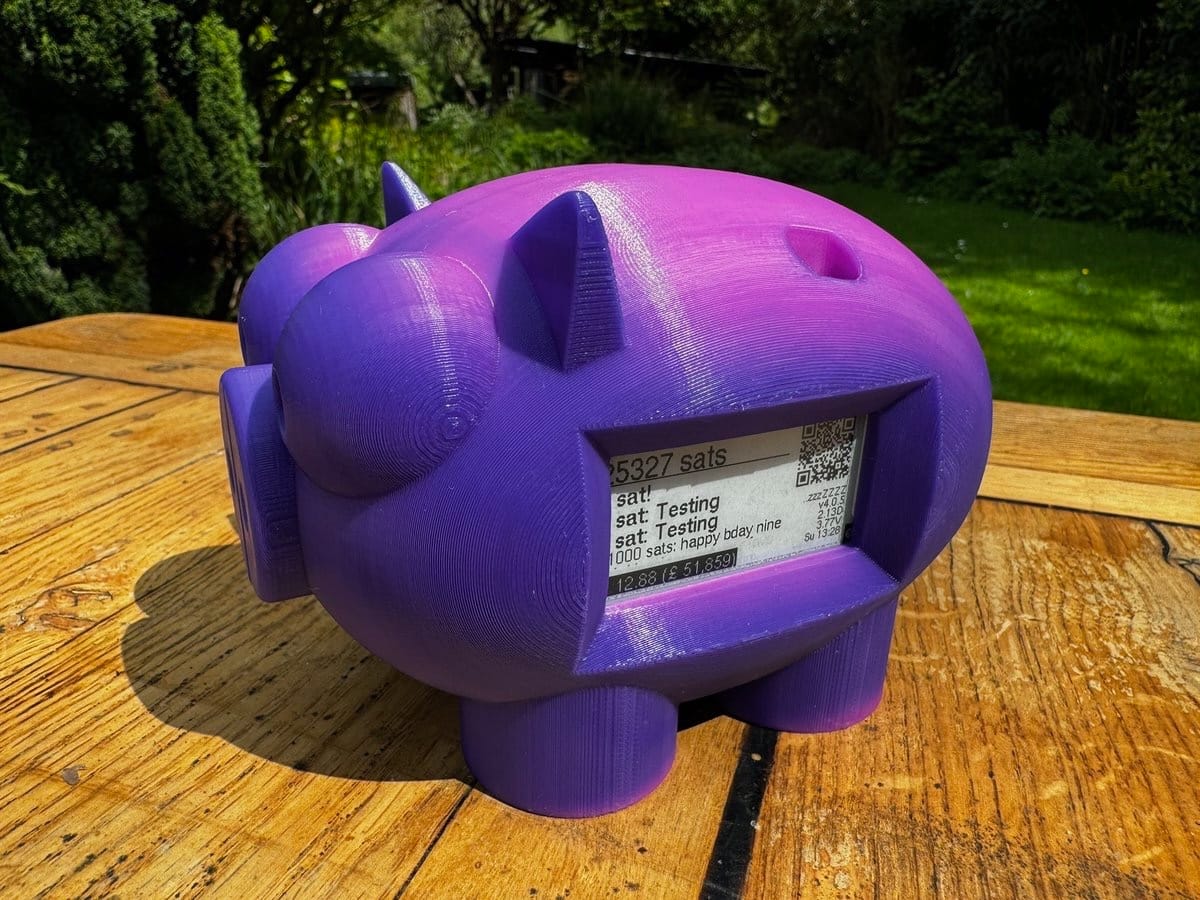

Classic ROBOTECHY

ESP32-T5 2.13 inch

Free range, grass fed, and wholesome, this little piggy is the most beautiful we've ever seen. Designed, printed, assembled and sold by enterprising young bitcoiners with a little help from the family.

Board: LILYGO ESP32-T5 V2.3.1 2.13inch E-Paper Display
Display size: 2.13 inch
Operating System: Embedded
Material: PLA or PETG
Printing advice: TBC

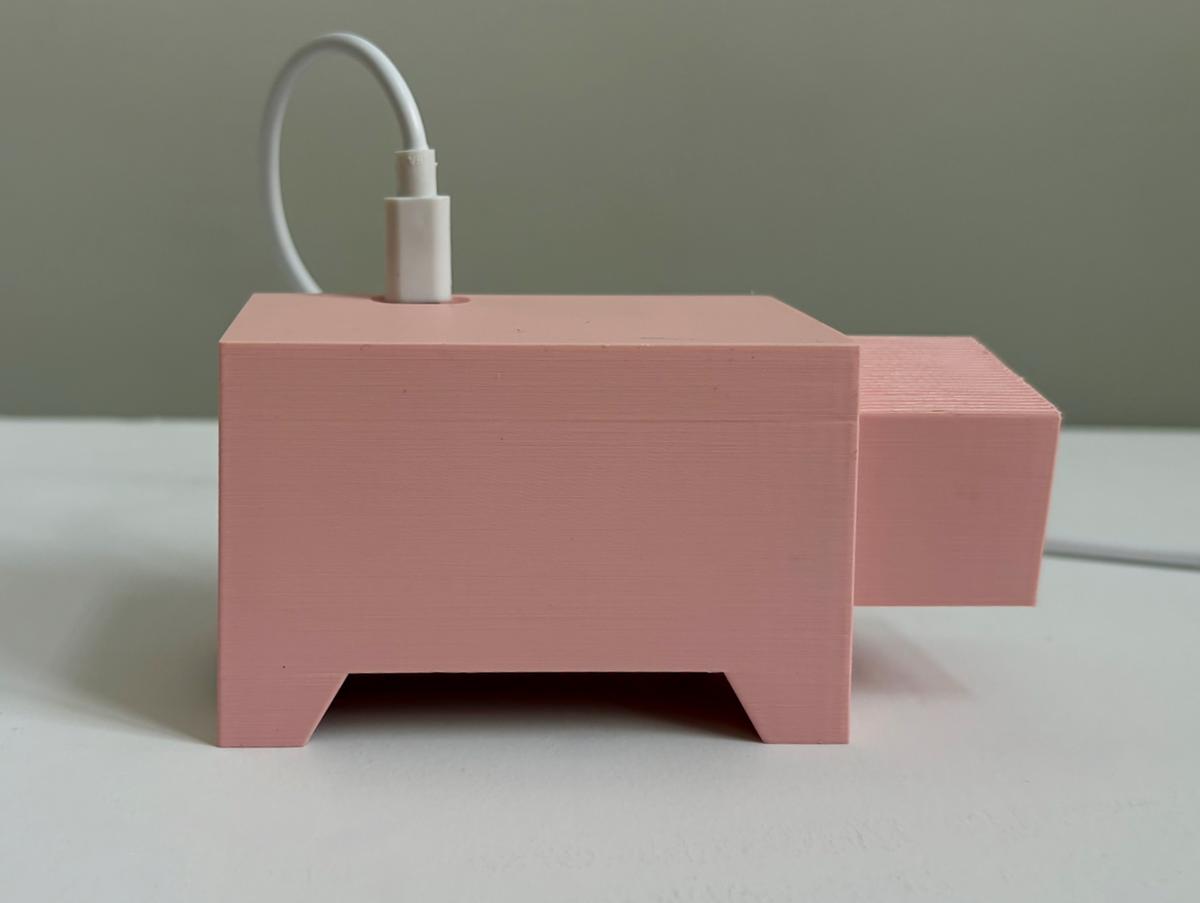

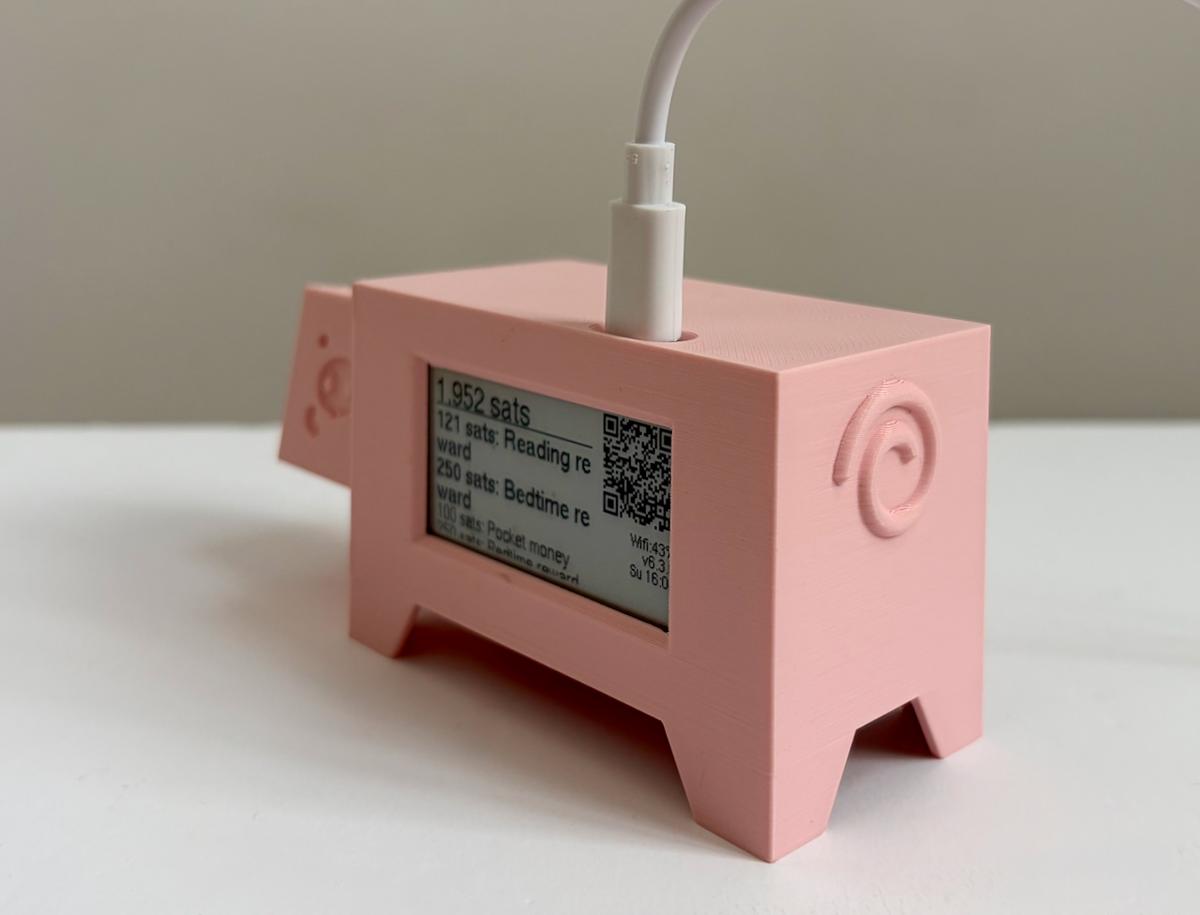

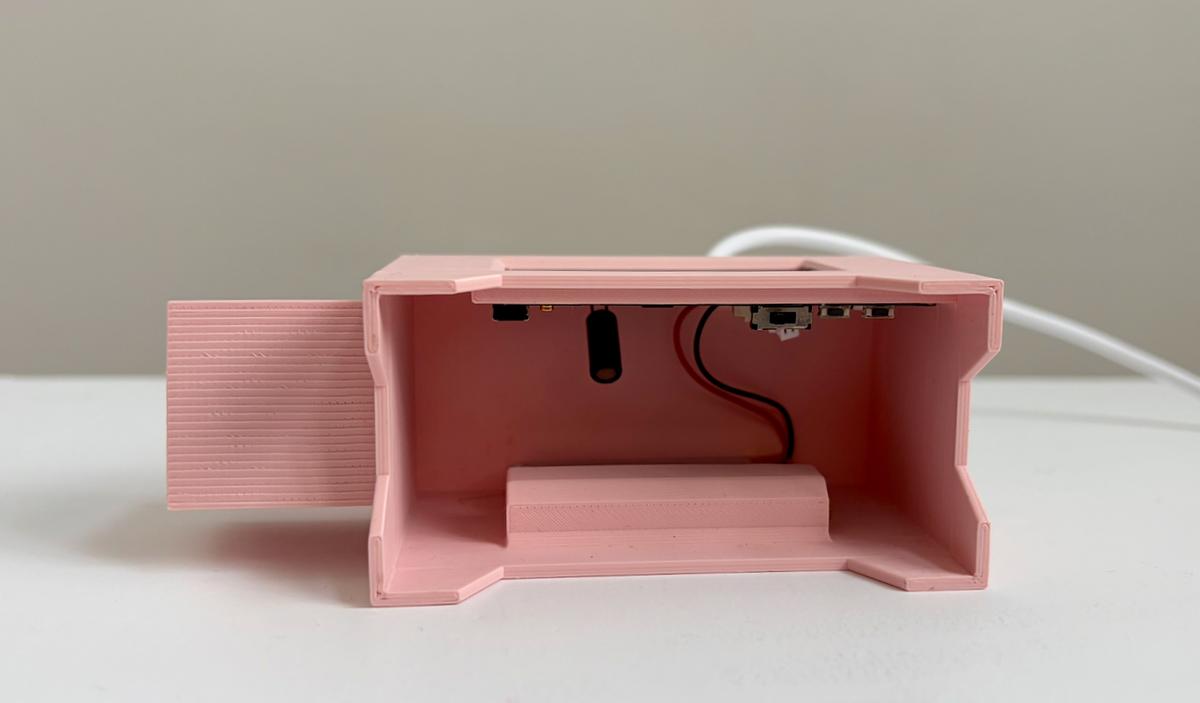

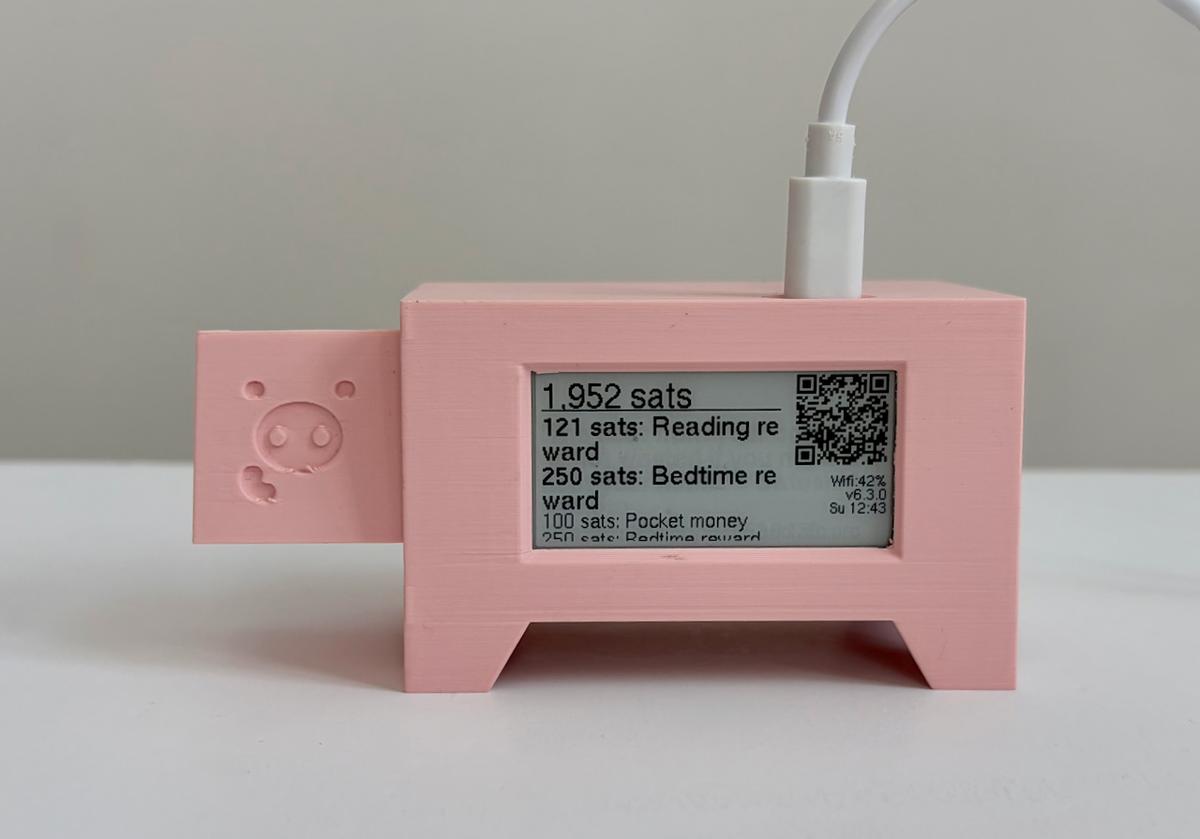

Classic Genesis Piggy

ESP32-T5 2.13 inch

BlackCoffee's original cardboard pig has been reimagined in filament and can now be printed as easily, and cheaply, as fiat money. This is a draft design so expect some tweaks and please do share any ideas you may have to improve it.

Board: LILYGO ESP32-T5 V2.3.1 2.13inch E-Paper Display
Display size: 2.13 inch
Operating System: Embedded
Material: PLA or PETG
Printing advice: Print back down (trotters up). Add supports for everything except the tail. Remove all support materials from around where the board sits.
Creator: Richard Licence: CC0

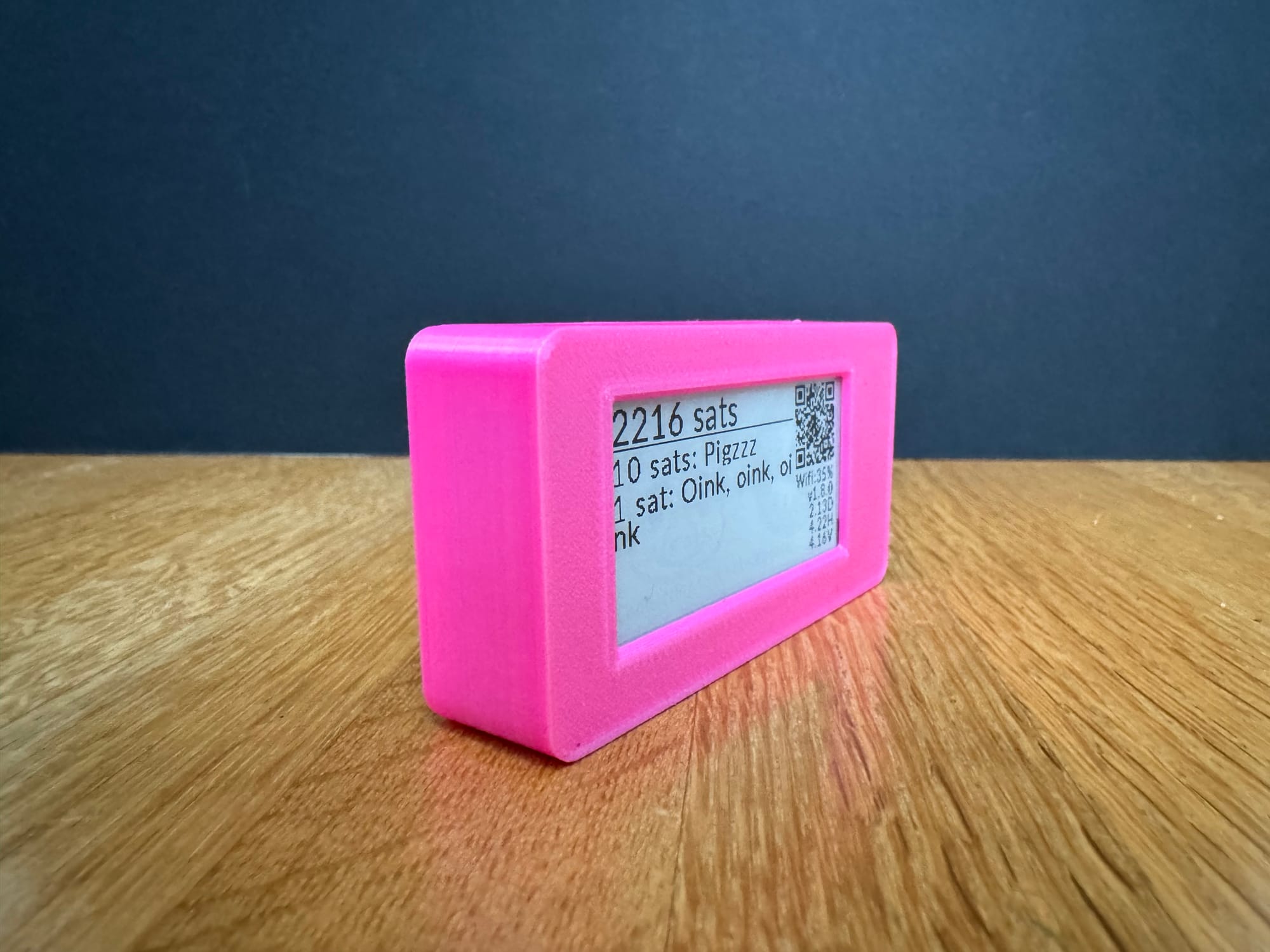

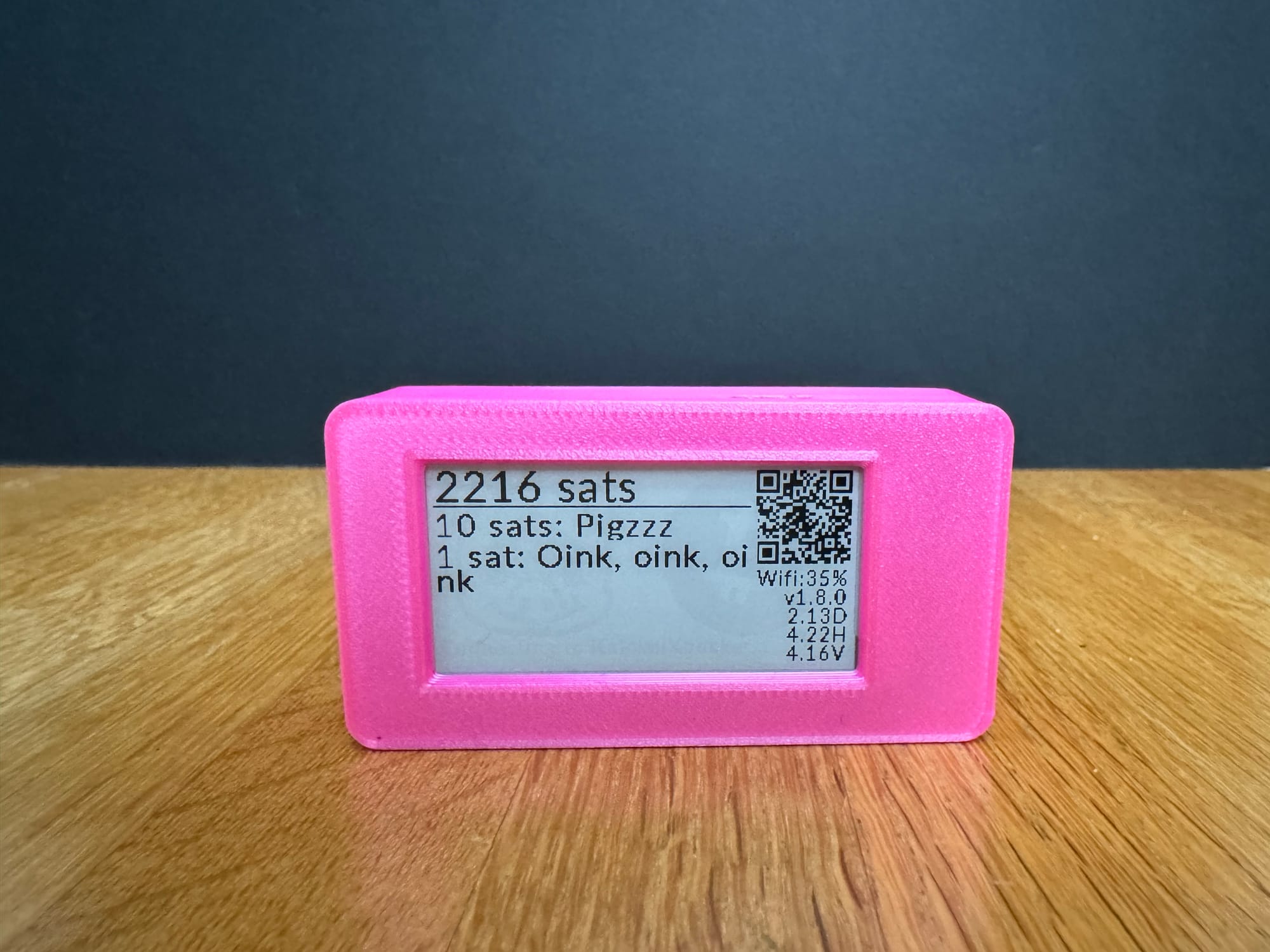

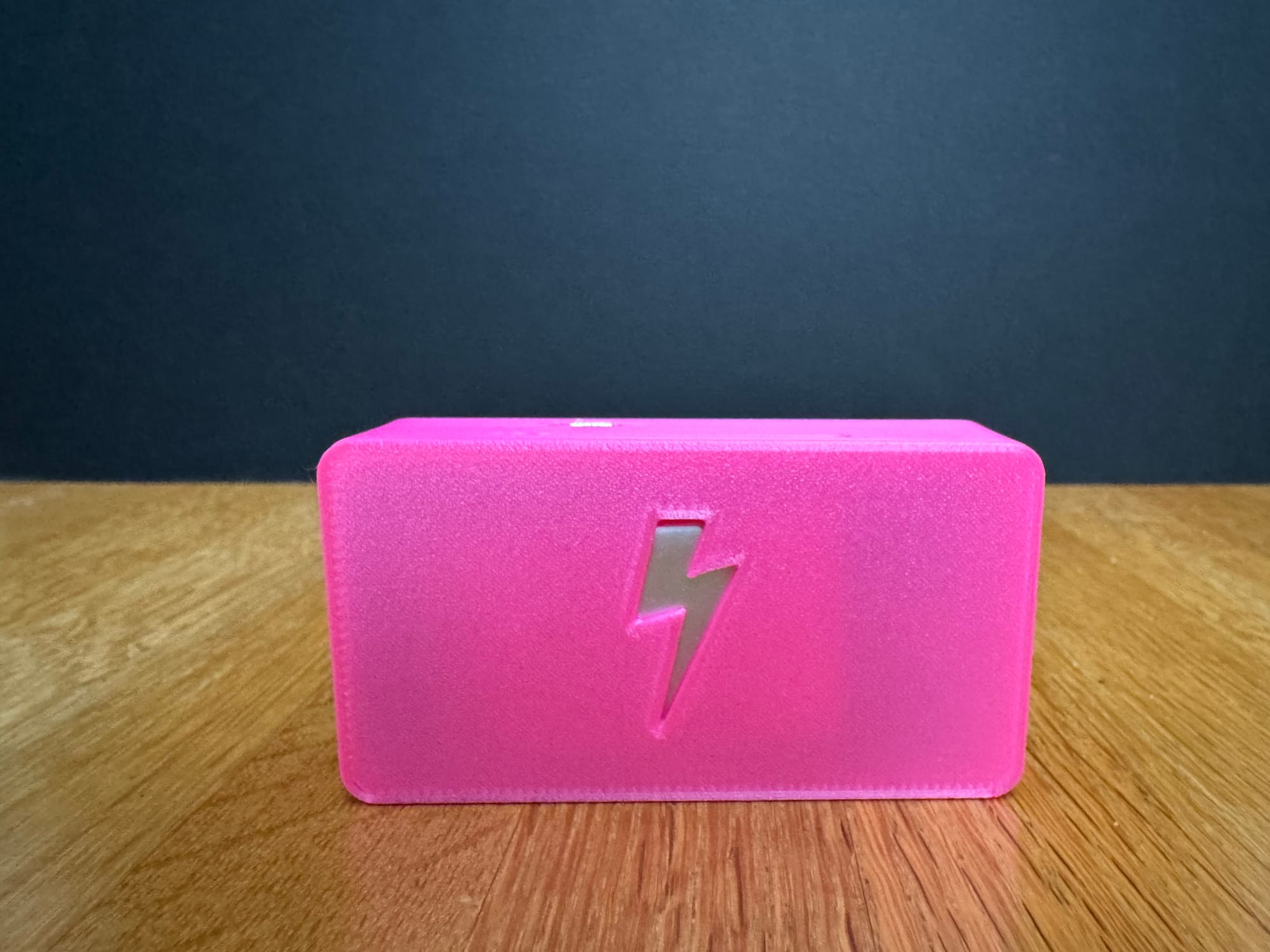

Classic ZapBox!

ESP32-T5 2.13 inch

The "ZapBox!" edition has been created to be as compact as possible, while maintaining easy access to the charging port and buttons. It's constructed from two parts, the main case and lid. No screws are necessary, everything fits together nice and snug, like a pig in a blanket.

Board: LILYGO ESP32-T5 V2.3.1 2.13inch E-Paper Display
Display size: 2.13 inch
Operating System: Embedded
Material: PLA or PETG
Printing advice: Add supports to the charging port and buttons slot. Ensure no supports interfere with the four lid/case fixing points.
Creator: Richard Licence: CC0

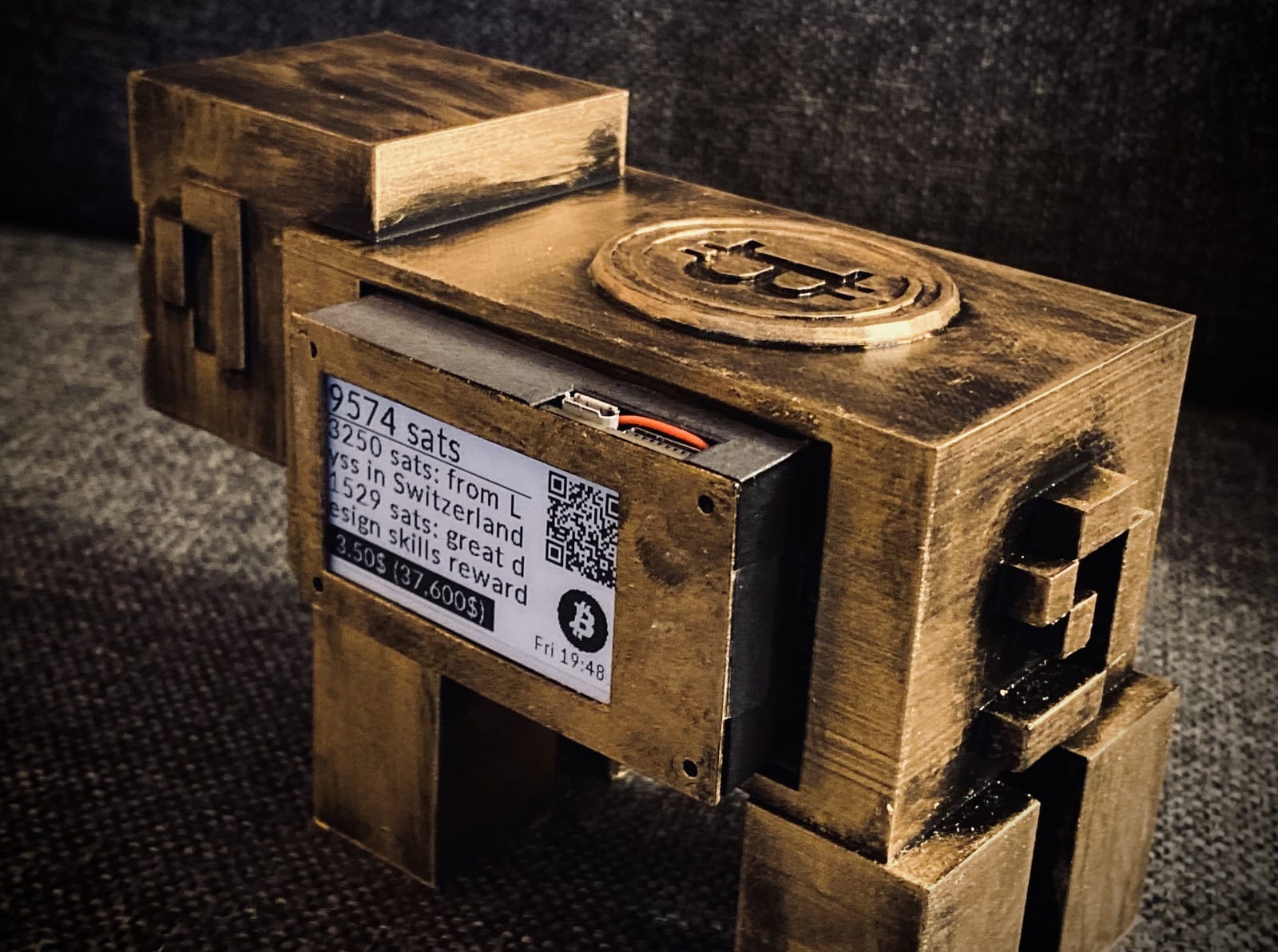

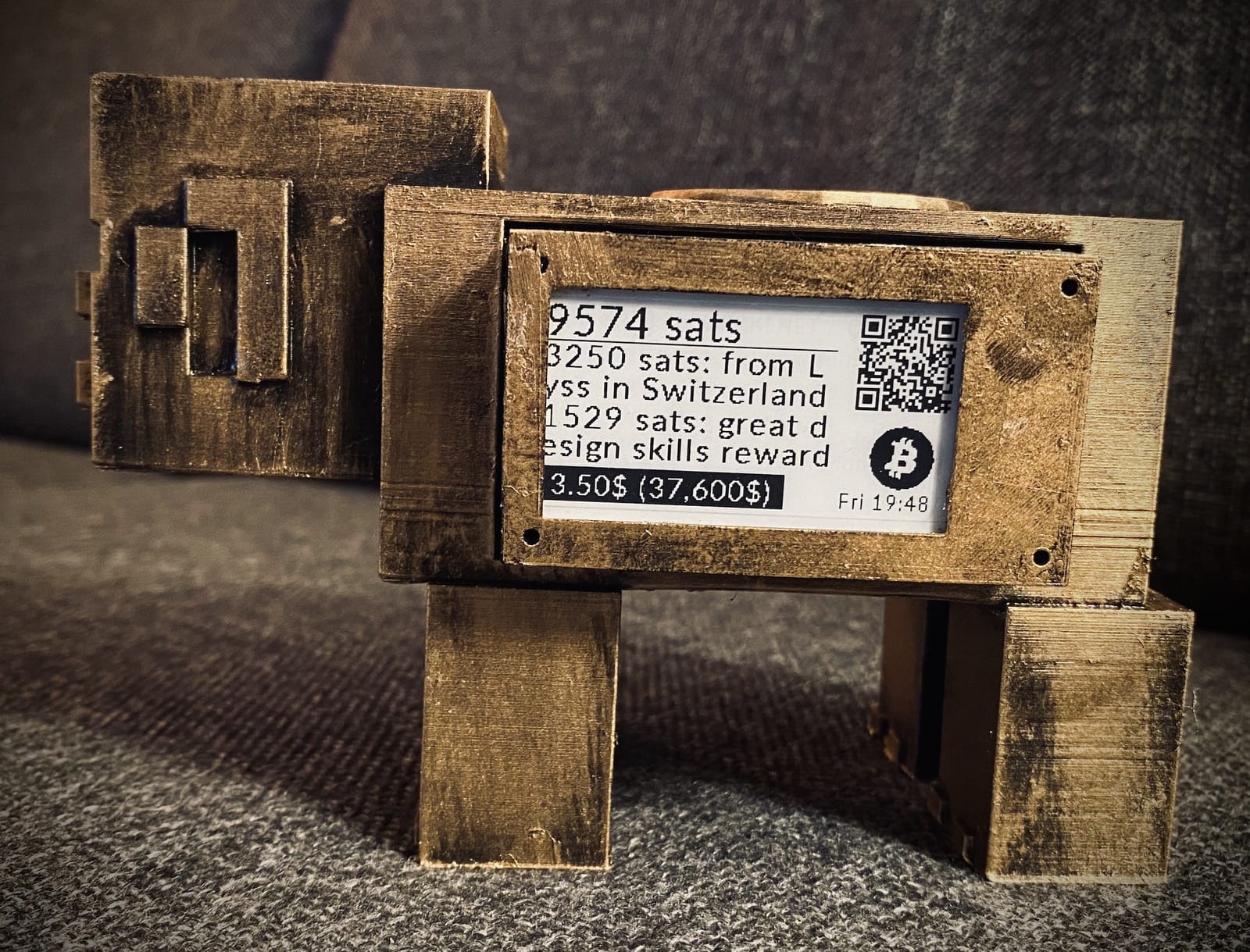

Classic MineLightningPiggy

ESP32-T5 2.13 inch

This amazing piggy has been designed by super talented 11-year old "Mixter the Boyster" who loves Minecraft and 3D printing.

Board: LILYGO ESP32-T5 V2.3.1 2.13inch E-Paper Display
Display size: 2.13 inch
Operating System: Embedded
Material: PLA or PETG
Printing advice: 10% infill. Tree supports. Adhesion enabled.
Paint: Gold Rub'n'buff paint.
Creator: Mikkel the Boyster Licence: CC BY

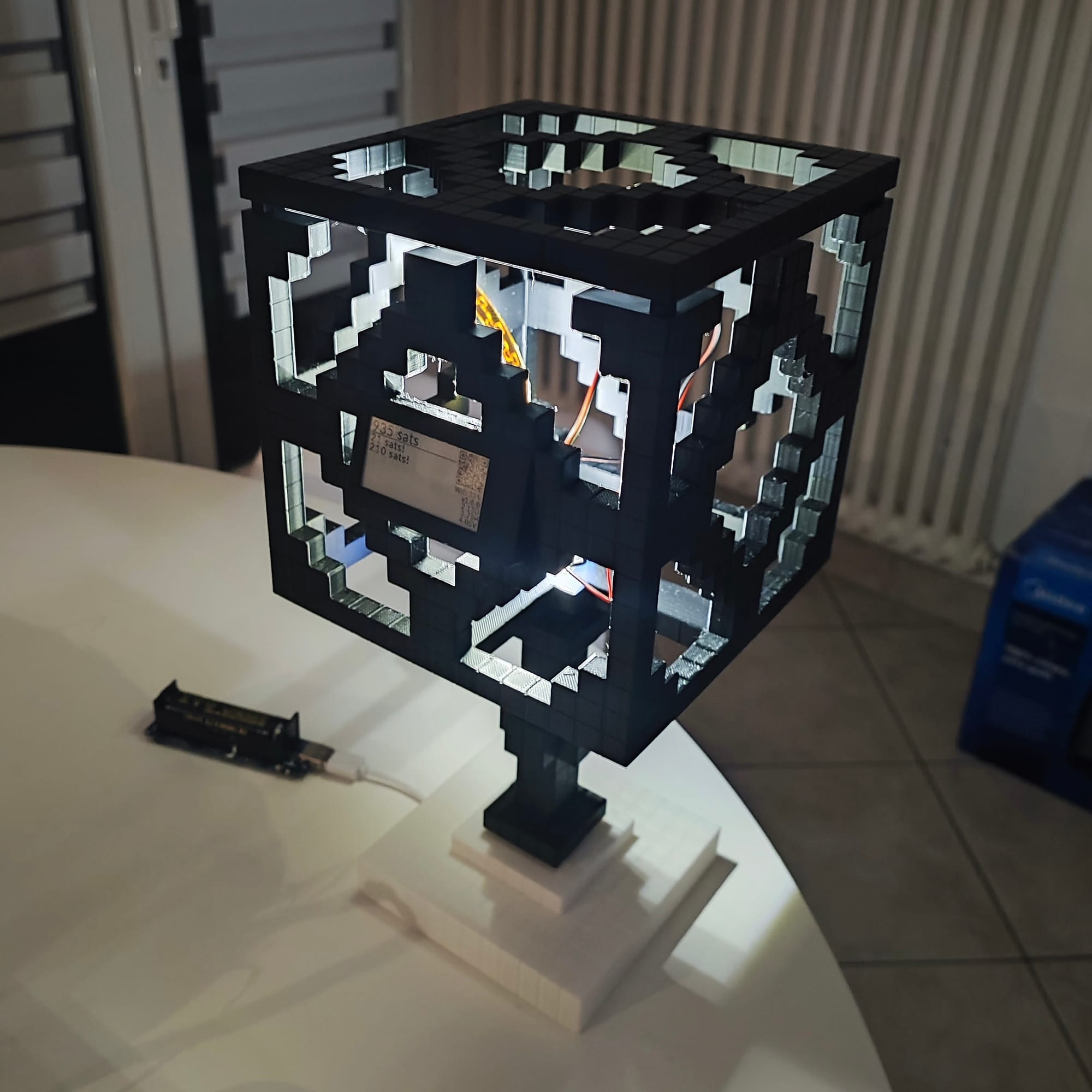

Classic LightningPiggy Block Lamp

ESP32-T5 2.13 inch

Shining a light on sound money: This Minecraft-inspired savings lamp, a first of its kind, was ingeniously crafted by Silexperience and his son. The project was sparked by a curious question: "Can bitcoin be in a piggy bank?" This led to integrating a Lightning Piggy device inside a block shaped lamp.

Board: LILYGO ESP32-T5 V2.3.1 2.13inch E-Paper Display
Display size: 2.13 inch
Operating System: Embedded
Material: PLA or PETG
Printing advice: No support needed except for the main cube. 20% filling, supports 5% (cube only).
Notes: Power is provided using a 1,800 mAh lithium battery connected directly to the T5's USB port. The LED strip and the Lilygo are independent.
Creator: Silexperience Licence: CC0

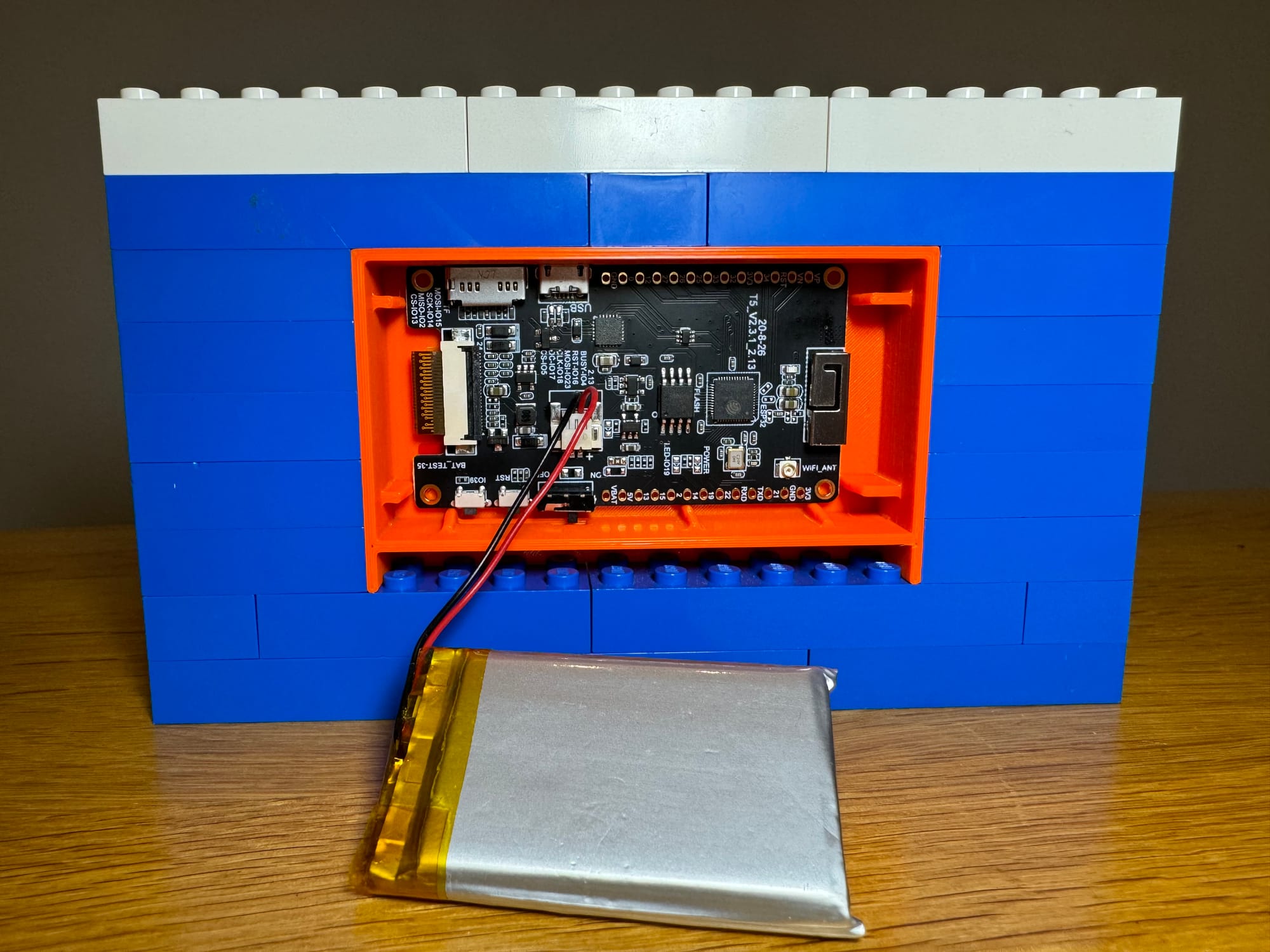

Classic LegoBlock

ESP32-T5 2.13 inch

A compact Lego-inspired block case for the Lightning Piggy.

Board: LILYGO ESP32-T5 V2.3.1 2.13inch or 2.66inch E-Paper Display
Display size: 2.13 and 2.66 inch
Operating System: Embedded
Material: PLA or PETG
Printing advice: Add supports to the charging port and buttons slot.
Creator: Richard Licence: CC0

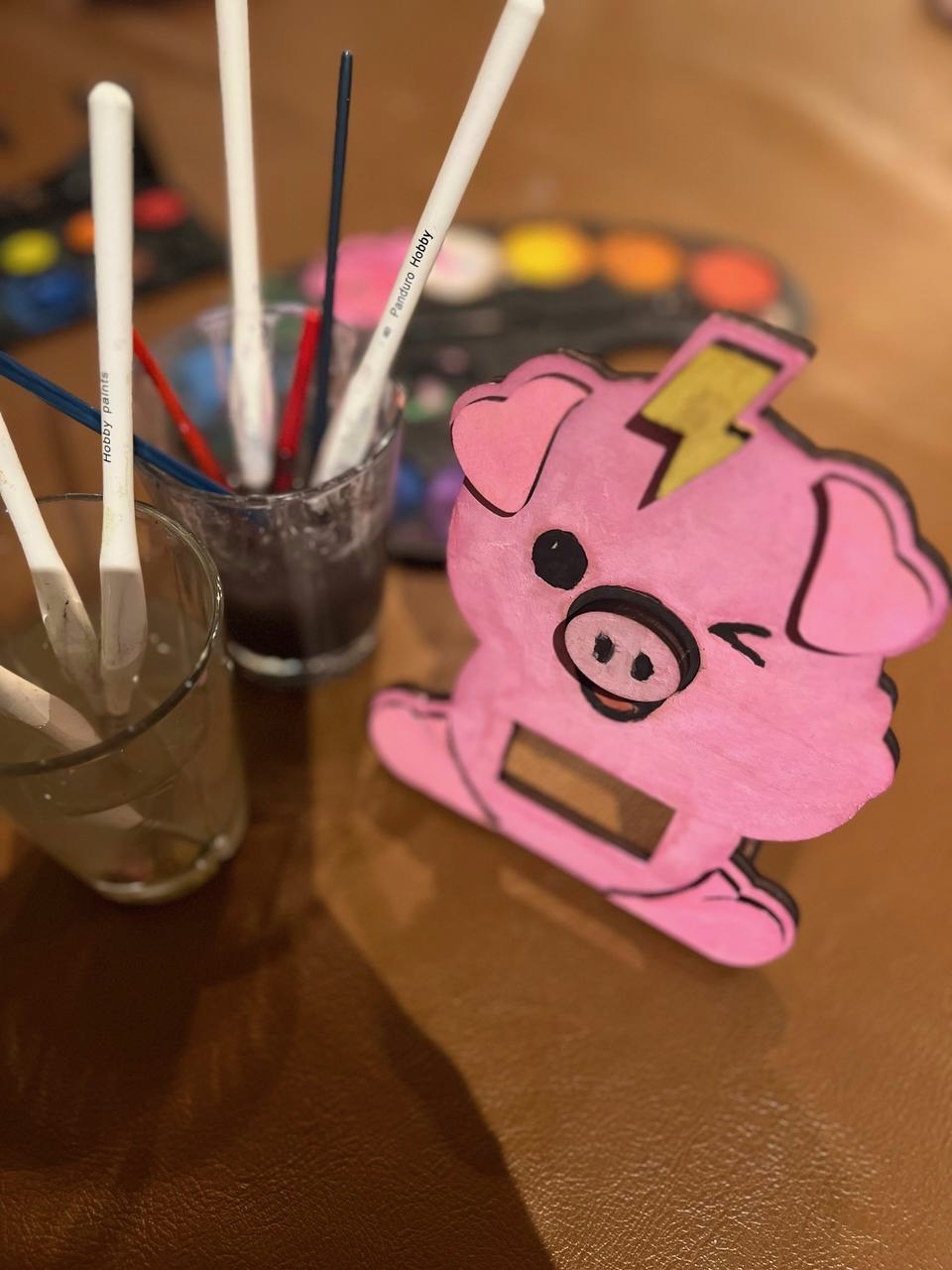

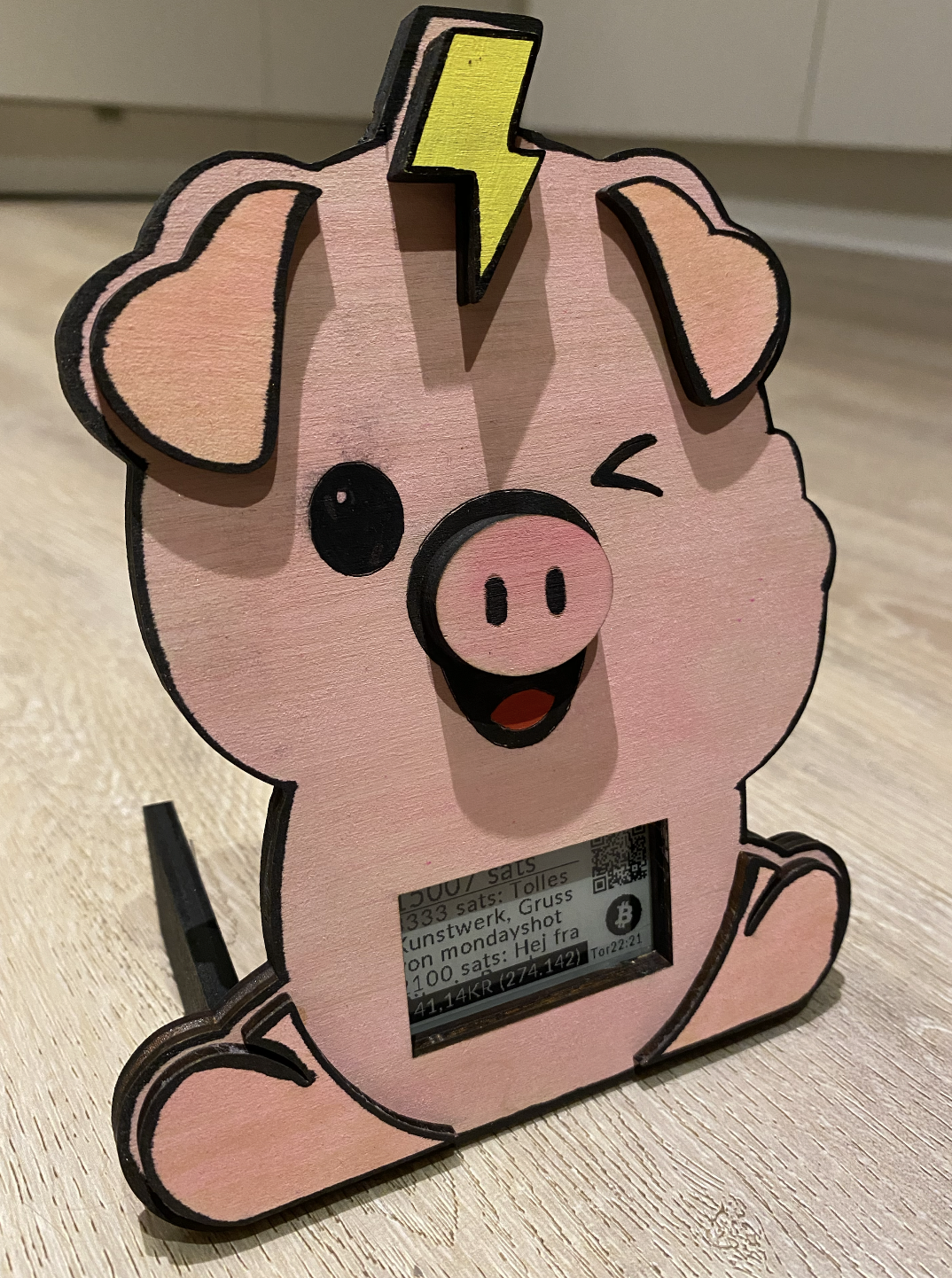

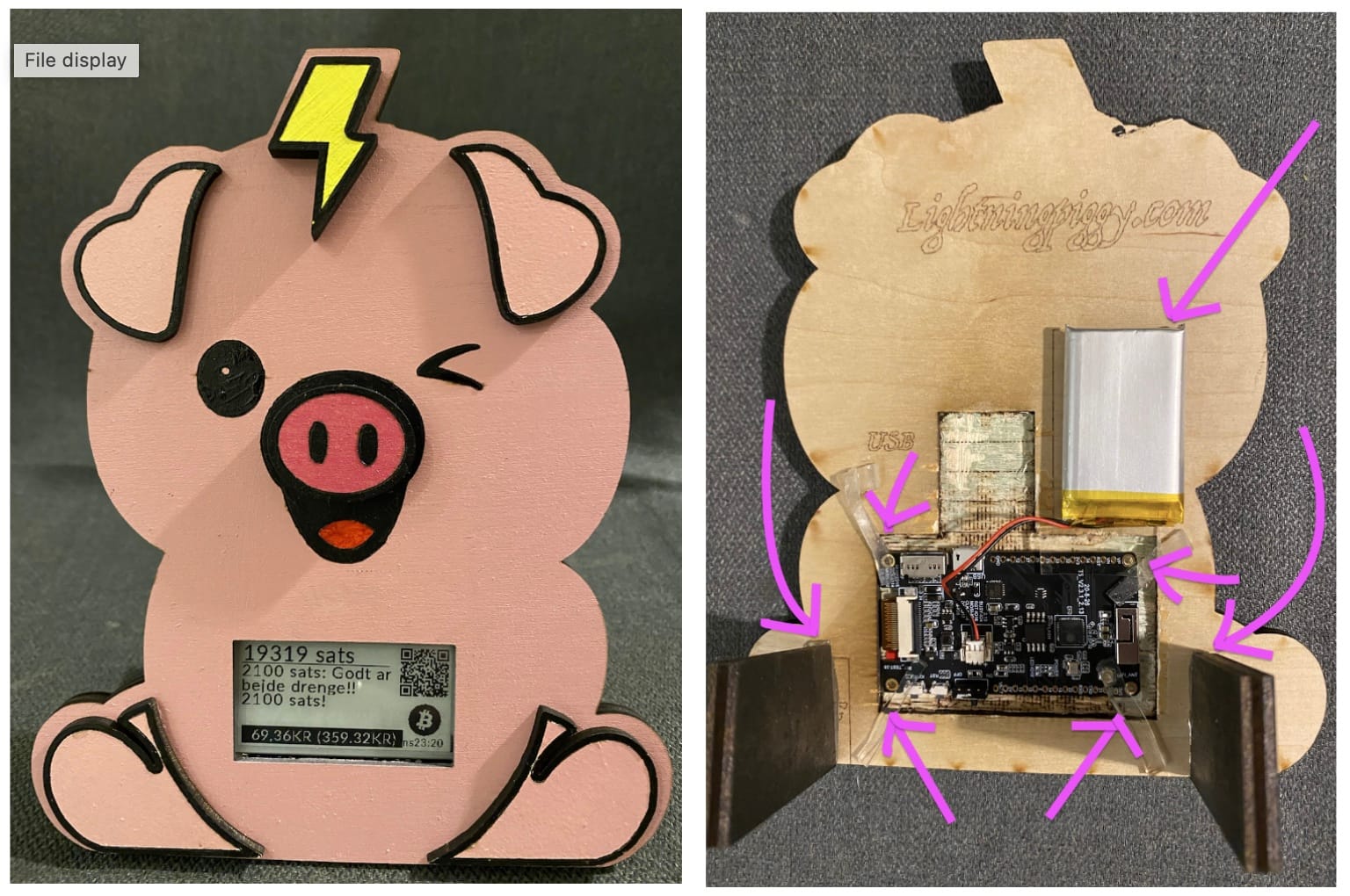

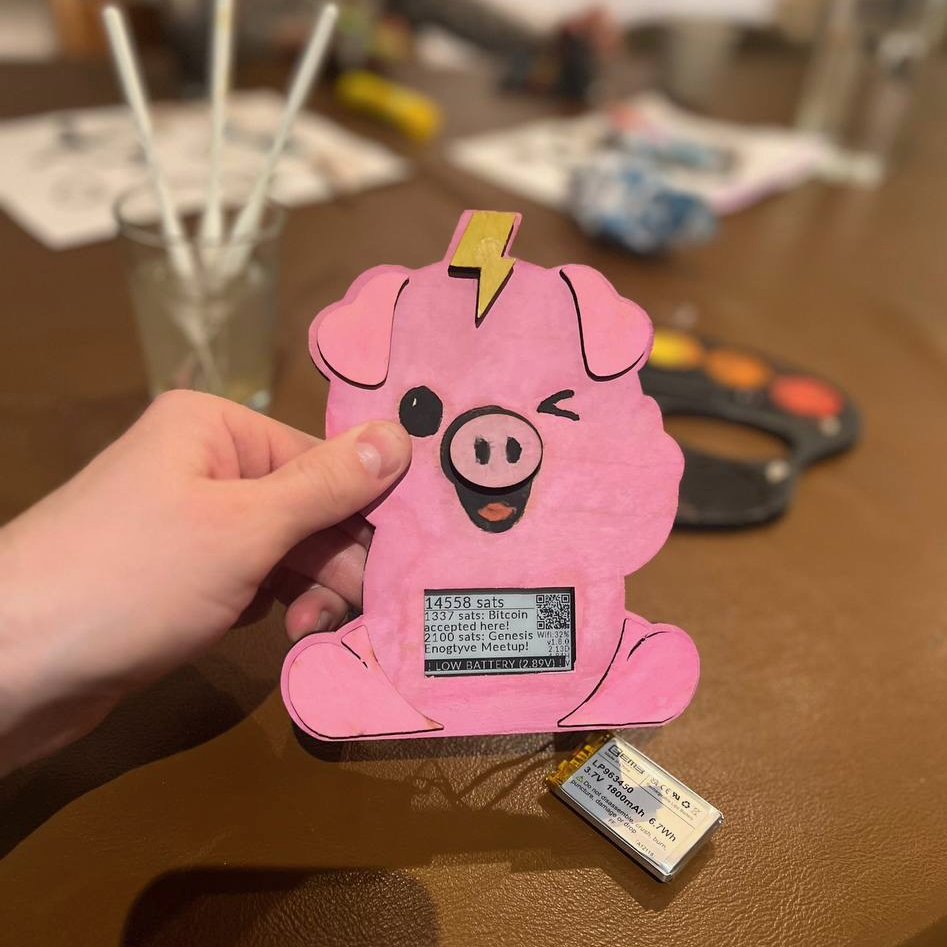

Classic LaserEngraved Piggy

ESP32-T5 2.13 inch

A laser-cut plywood piggy designed and built with the help of two 11-year-old makers.

Board: LILYGO ESP32-T5 V2.3.1 2.13inch E-Paper Display
Display size: 2.13 inch
Operating System: Embedded
Material: Plywood
Software: Lightburn
Creator: lonerookie & two 11-year-old helpers Licence: CC0

Share Your Design

Created a unique case? We'd love to feature it! Email your creation to oink@lightningpiggy.com including the creator's name, piggy name, model files, printing advice, and your Creative Commons licence. Bonus zaps if you include a scannable payment QR in the image.
